Product Details

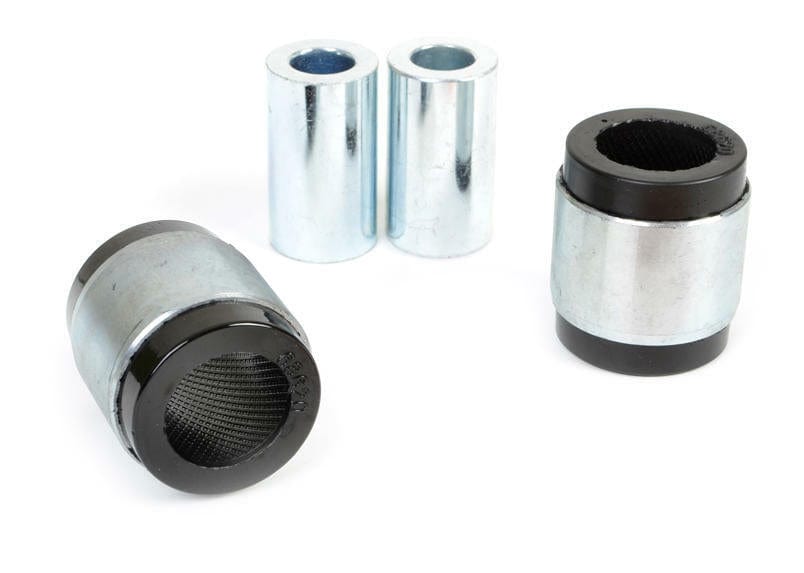

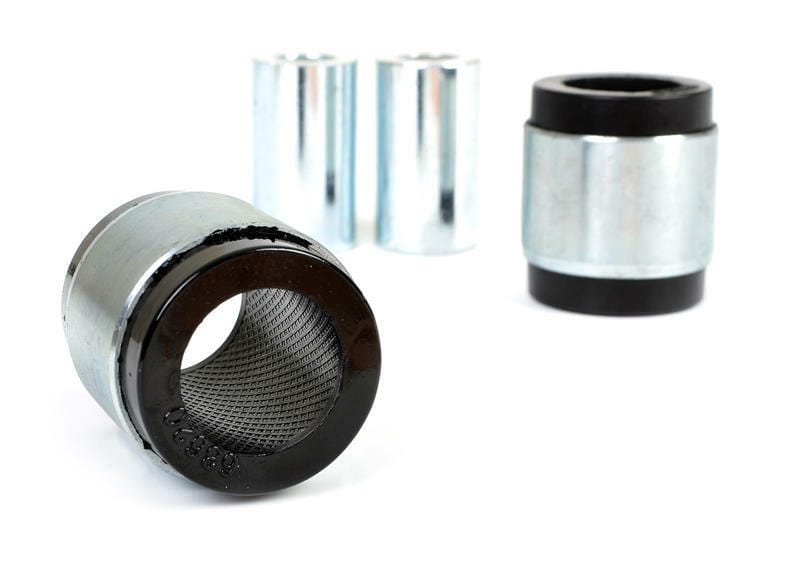

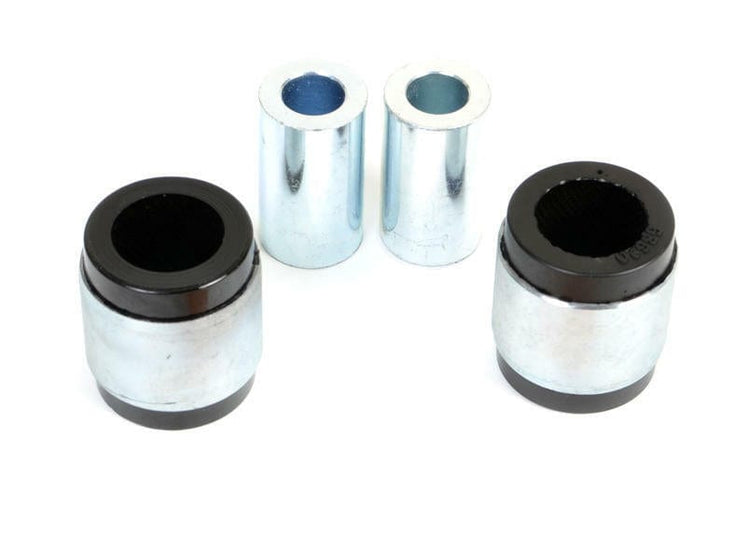

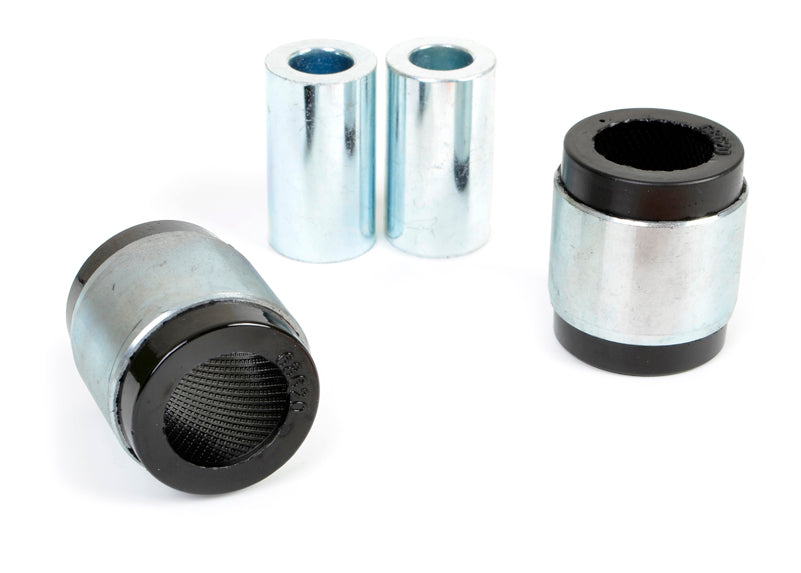

This Whiteline Rear Control Arm Lower Front Outer Bushing fits the 2006-2007 Volkswagen Passat 2.0T, 3.6, Value Edition (B6). Part number W63552. You receive 2 shell bushings and 2 tubes. Placement: rear.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Passat, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Material: Made from polyurethane.
  • Bonded design: Bonding adds durability in high-load use.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W63552
Part Name Control Arm Bushing
Vehicle 2006-2007 Volkswagen Passat 2.0T, 3.6, Value Edition
Chassis Code B6
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 40.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006VolkswagenPassat4WD
2006VolkswagenPassatFWD
2007VolkswagenPassat4WD
2007VolkswagenPassatFWD
