Product Details

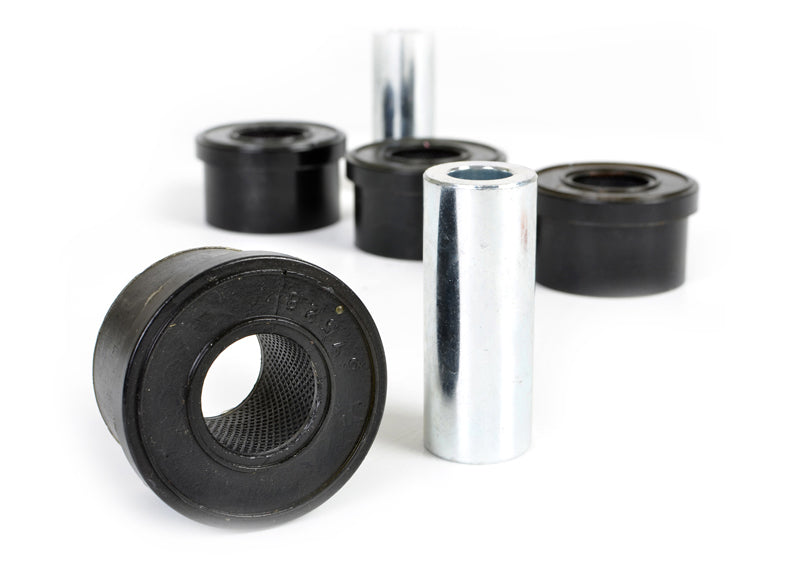

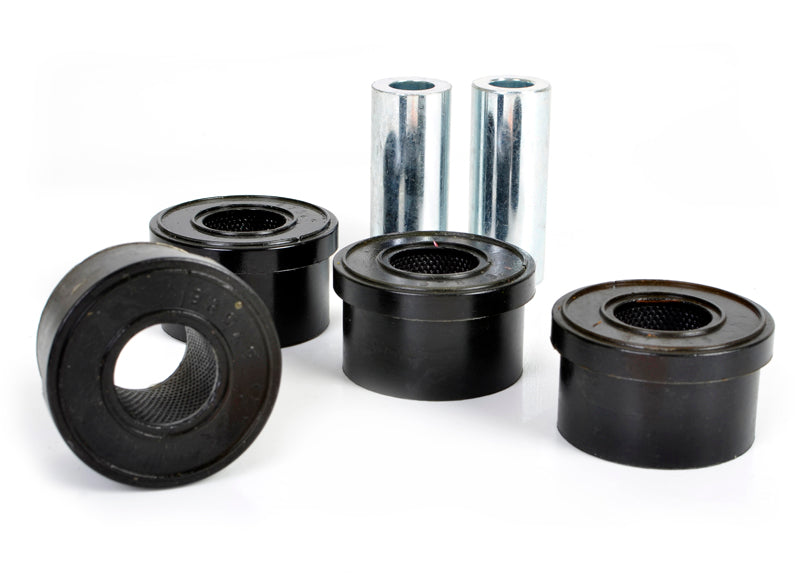

This Whiteline Rear Control Arm Lower Front Inner Bushing fits the 2013 BMW 135is 1 Series (E82). Whiteline's note for this fit: Fits inner position of vehicles utilizing OE arm 33-32-6-772-899. In the box: 4 bushings and 2 tubes. It goes on the rear of the vehicle. Order it as part number W63401.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 135is 1 Series, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Essential Vehicle Kit.
Features
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Material: Built from polyurethane.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | W63401 |
| Part Name | Control Arm Bushing |
| Vehicle | 2013 BMW 135is 1 Series |
| Chassis Code | E82 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 50.8 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits inner position of vehicles utilizing OE arm 33-32-6-772-899 |
