Product Details

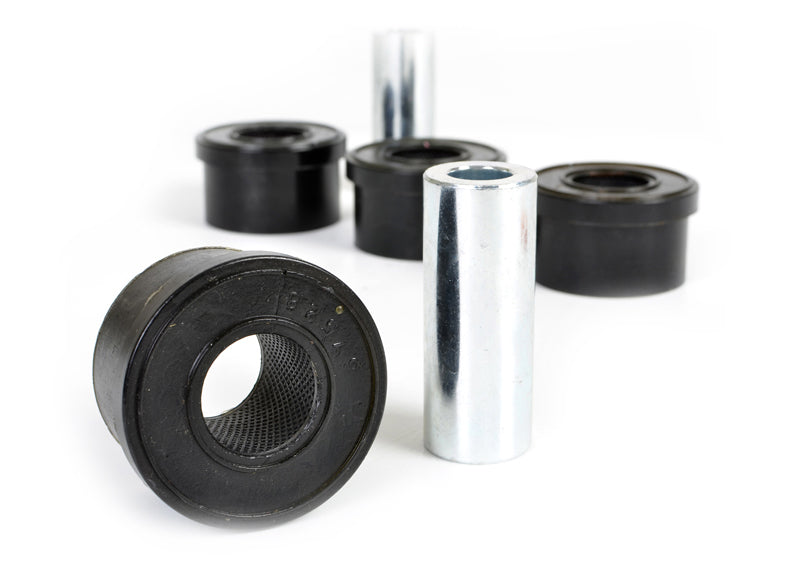

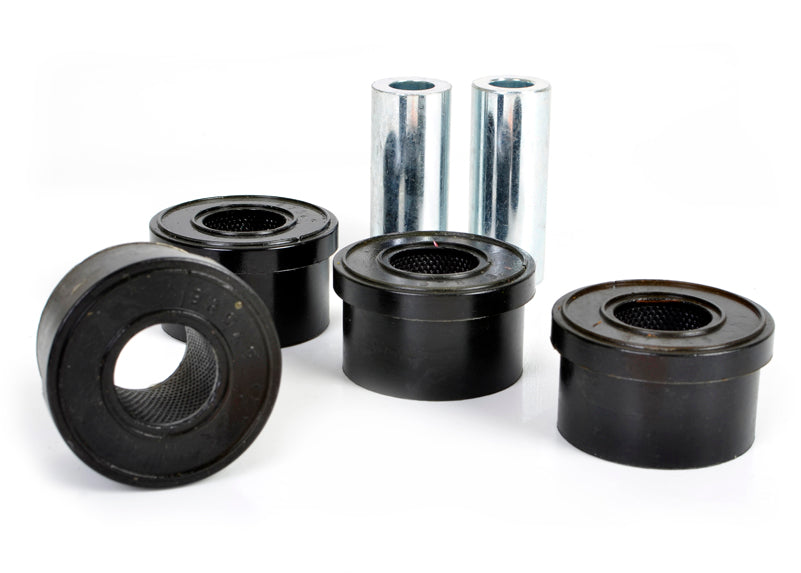

This Whiteline Rear Control Arm Lower Front Inner Bushing fits the 2009-2013 BMW 335i xDrive 3 Series. It goes on the rear of the vehicle. Included: 4 bushings and 2 tubes. Order it as part number W63401. Whiteline's note for this fit: Fits inner position of vehicles utilizing OE arm 33-32-6-772-899.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 335i xDrive 3 Series, see Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Front and Rear Essential Vehicle Kit.
Features
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Material: Made from polyurethane.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
| Part Number | W63401 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009-2013 BMW 335i xDrive 3 Series |
| Chassis Code | E90/E92/E93 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 50.8 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits inner position of vehicles utilizing OE arm 33-32-6-772-899 |
