Product Details

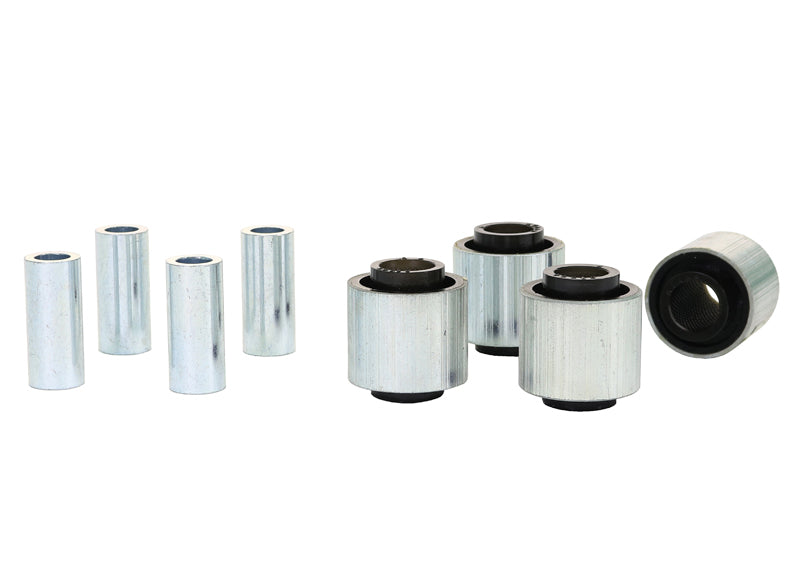

This Whiteline Rear Control Arm Lower Front Inner and Outer Bushing fits the 2005-2008 Subaru Outback R L.L. Bean Edition (BP). Whiteline part number: W63393. Trim: R L.L. Bean Edition. You receive 4 shell bushings and 4 tubes. It goes on the rear of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
Part Number W63393
Part Name Control Arm Bushing
Vehicle 2005-2008 Subaru Outback R L.L. Bean Edition
Chassis Code BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruOutbackAWD
2006SubaruOutbackAWD
2007SubaruOutbackAWD
2008SubaruOutbackAWD
