Product Details

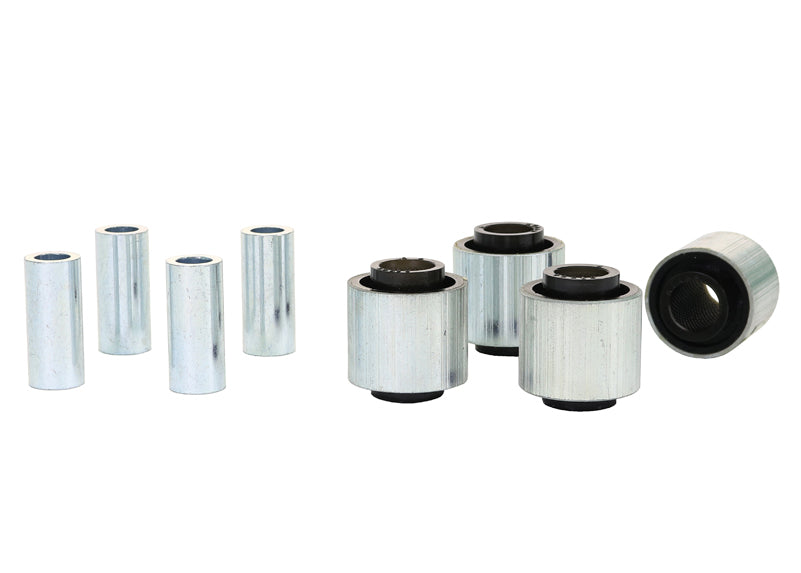

This Whiteline Rear Control Arm Lower Front Inner and Outer Bushing fits the 2002-2004 Subaru Outback H6 (BE/BH/BP). Included: 4 shell bushings and 4 tubes. It goes on the rear of the vehicle. Whiteline part number: W63393.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Built from polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: The metal parts are powder coated for durability.
  • Bonded design: A bonded design adds strength for high load applications.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
Part Number W63393
Part Name Control Arm Bushing
Vehicle 2002-2004 Subaru Outback H6
Chassis Code BE/BH/BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002SubaruOutbackAWD
2003SubaruOutbackAWD
2004SubaruOutbackAWD
