Product Details

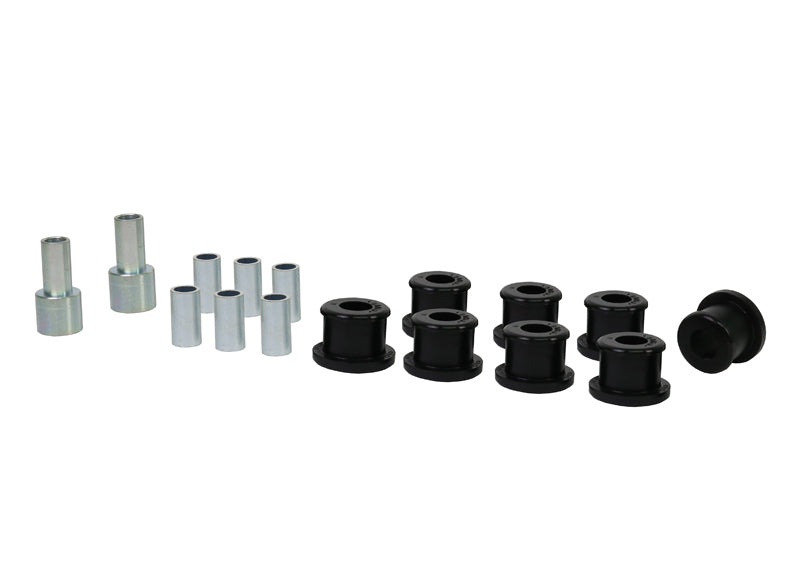

This Whiteline Rear Inner and Outer Control Arm Bushing fits the 1991-1994 Mazda Protege DX, LX (BG). The kit contains 8 bushings and 8 tubes. Position: rear. The part number is W61753.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. An alignment is required after installation. We also list 12mm Adjustable Front Camber Bolts, Front Strut Tower Brace Quick Release Kit, and Front Lower Inner Rear Control Arm Bushing Kit for the Protege.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Finish: The metal parts are powder coated for durability.
  • Material: Built from polyurethane.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W61753
Part Name Control Arm Bushing
Vehicle 1991-1994 Mazda Protege DX, LX
Drivetrain FWD/AWD
Chassis Code BG
Bushing 1 Inner Diameter 14.5 mm
Bushing 1 Outer Diameter 35.7 mm
Bushing 2 Inner Diameter 14.3 mm
Bushing Quantity 8 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 8 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1991MazdaProtegeFWD
1991MazdaProtegeAWD
1992MazdaProtegeFWD
1992MazdaProtegeAWD
1993MazdaProtegeFWD
1993MazdaProtegeAWD
1994MazdaProtegeFWD
1994MazdaProtegeAWD
