Product Details

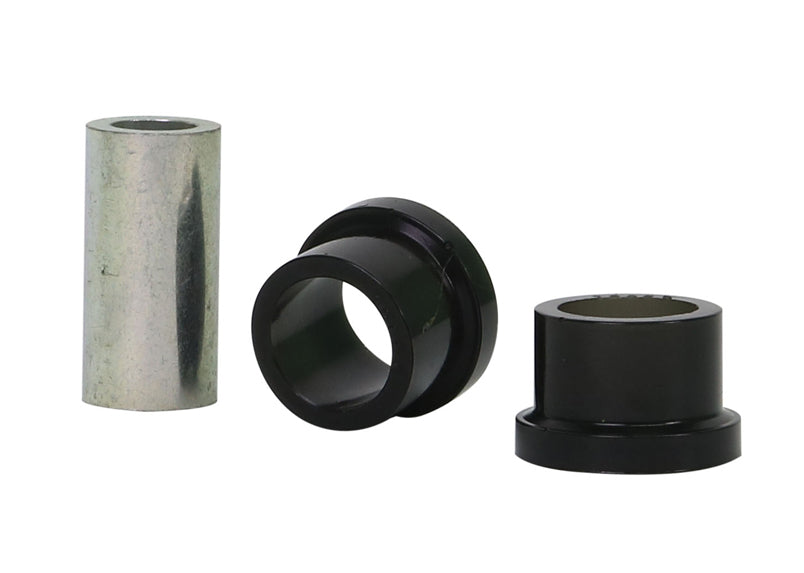

This Whiteline Rear Control Arm Front Lower Bushing fits the 1986-1991 Mazda RX-7 Base, Turbo (FC). Position: rear. Part number W61965. The kit contains 2 bushings and 1 tube. Application note: Control arm inner to chassis link.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the RX-7: 12mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Front Bushing, and Tie Rod Boot Kit.

Features

  • Material: The part is made of polyurethane.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
Part Number W61965
Part Name Control Arm Bushing
Vehicle 1986-1991 Mazda RX-7 Base, Turbo
Chassis Code FC
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 25.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Bushings, 1 Tube
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Control arm inner to chassis link

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1986MazdaRX-7RWDControl arm inner to chassis link
1987MazdaRX-7RWDControl arm inner to chassis link
1988MazdaRX-7RWDControl arm inner to chassis link
1989MazdaRX-7RWDControl arm inner to chassis link
1990MazdaRX-7RWDControl arm inner to chassis link
1991MazdaRX-7RWDControl arm inner to chassis link
