Product Details

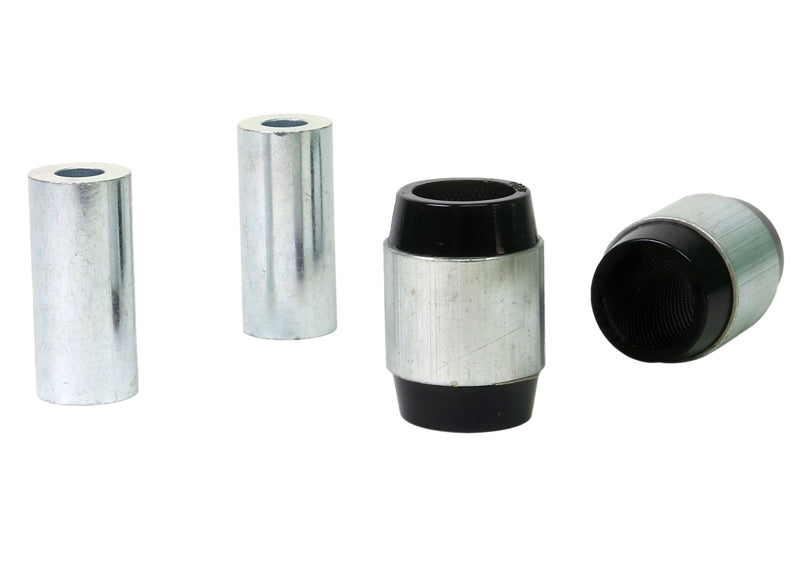

This Whiteline Rear Control Arm Bushing fits the 2015-2016 BMW 228i xDrive 2 Series (F22/F23). Order it as part number W63592. Whiteline's note for this fit: Fits Inner Position of OEM Arm 33-32-6-867-540. This part is for the rear of the vehicle. The kit contains 2 shell bushings and 2 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 2 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the 228i xDrive 2 Series, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Material: Built from polyurethane.
Specifications
Part Number W63592
Part Name Control Arm Bushing
Vehicle 2015-2016 BMW 228i xDrive 2 Series
Chassis Code F22/F23
Bushing 1 Inner Diameter 14.4 mm
Bushing 1 Outer Diameter 45.2 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits Inner Position of OEM Arm 33-32-6-867-540

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015BMW228iAWDFits Inner Position of OEM Arm 33-32-6-867-540
2016BMW228iAWDFits Inner Position of OEM Arm 33-32-6-867-540
