Product Details

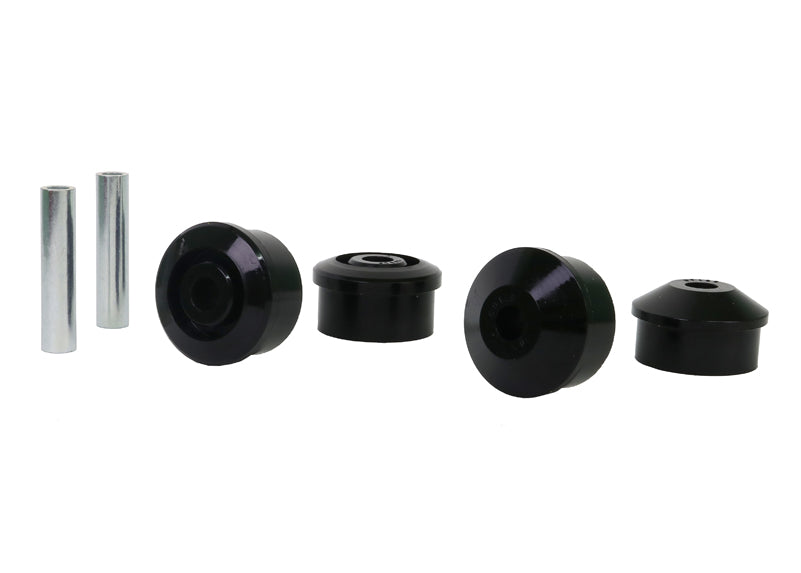

This Whiteline Rear Beam Axle Front Bushing fits the 2004-2011 Chevrolet Aveo LS (T200/T250). The kit contains 4 bushings and 2 tubes. Position: rear. Order it as part number W63458.

On many front-wheel-drive cars the axle at the rear is a beam that attaches to the body through pivot bushings. Those bushings take the cornering and braking loads, and soft or worn ones let the rear end move and steer slightly on its own. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 2 hours. An alignment is required after installation. To go with it on the Aveo, see 12mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Rear Sway Bar Link.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Install guide: An install guide comes in the box.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W63458
Part Name Beam Axle Bushing
Vehicle 2004-2011 Chevrolet Aveo LS
Chassis Code T200/T250
Bushing 1 Inner Diameter 12.6 mm
Bushing 1 Outer Diameter 69.2 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004ChevroletAveoFWD
2005ChevroletAveoFWD
2006ChevroletAveoFWD
2007ChevroletAveoFWD
2008ChevroletAveoFWD
2009ChevroletAveoFWD
2010ChevroletAveoFWD
2011ChevroletAveoFWD
