Product Details

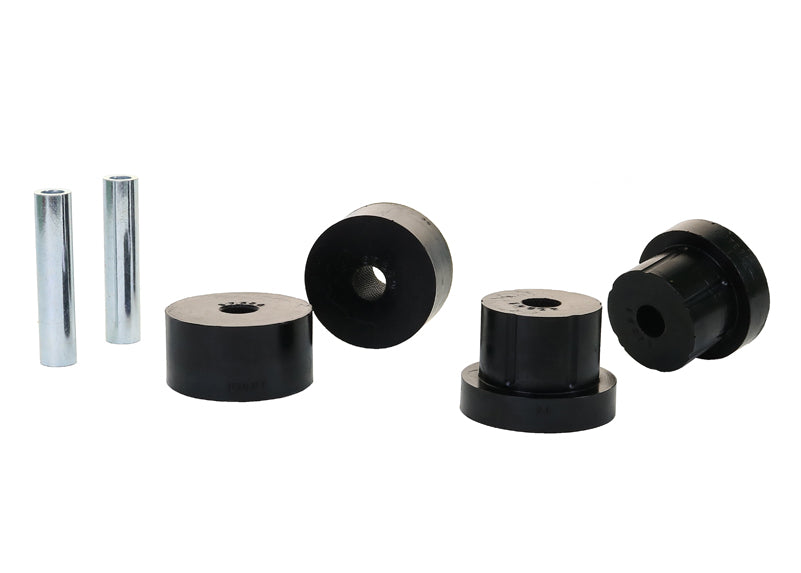

This Whiteline Rear Beam Axle Front Bushing Kit fits the 1997 Volkswagen Jetta GT, Jazz, TDI (1H). Position: rear. You receive 4 bushings and 2 tubes. Part number W63391.
Beam axle bushings take loads from braking and cornering together. Replacing worn ones restores the axle's location and takes out the slack that builds up with age. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 2 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Jetta, see 12mm Adjustable Front Camber Bolts and Front Control Arm Lower Inner Front Bushing.
Features
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
| Part Number | W63391 |
| Part Name | Beam Axle Bushing |
| Vehicle | 1997 Volkswagen Jetta GT, Jazz, TDI |
| Chassis Code | 1H |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 56.7 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
