Product Details

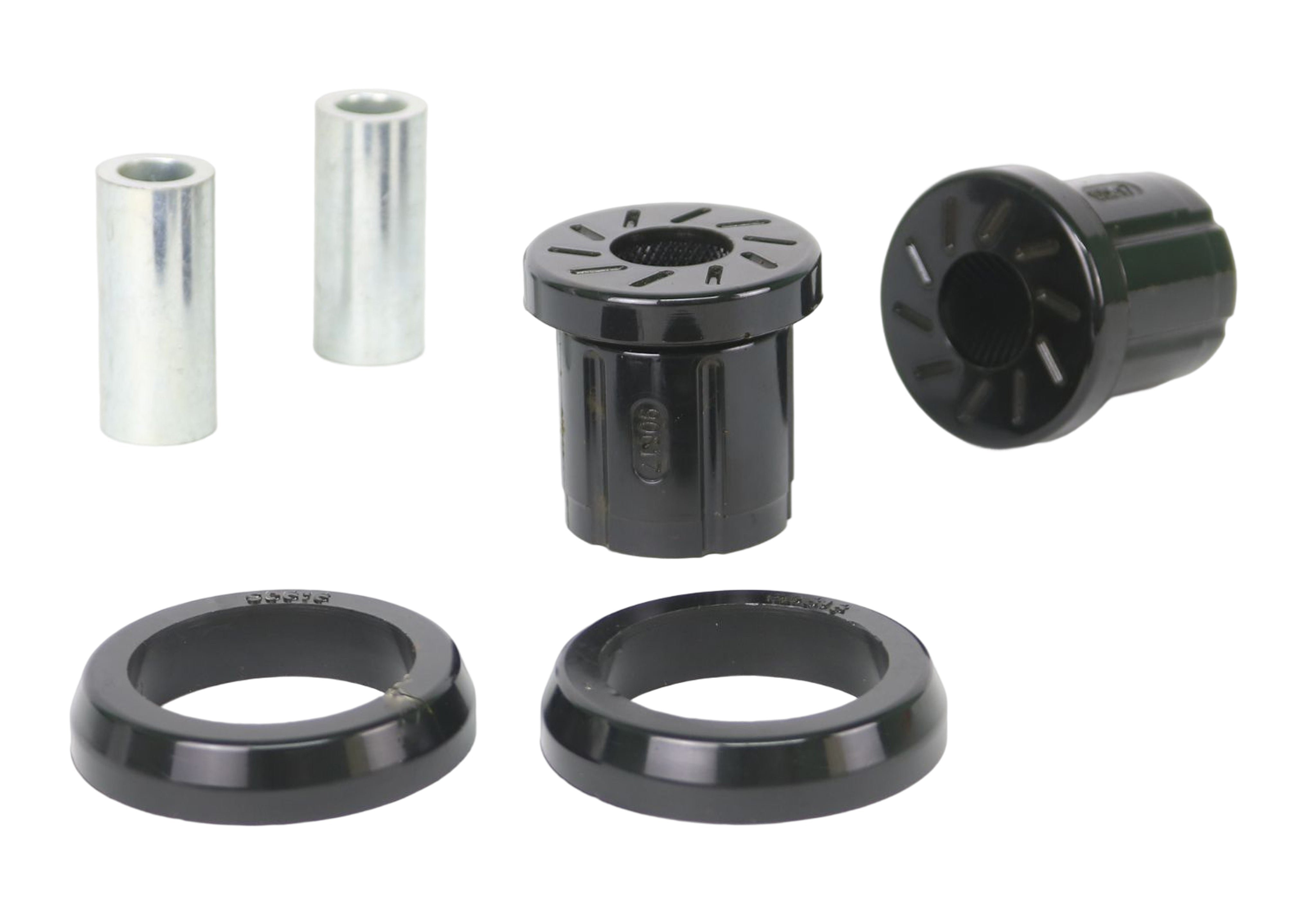

This Whiteline Rear Axle Pivot Bushing Kit fits the 1994-1997 Mazda B2300 RWD. The drivetrain on the listing is RWD. It goes on the rear of the vehicle. You receive 4 bushings, 2 tubes, and grease. The part number is W63624.
The pivot bushings on a beam axle decide how well the rear of the car stays put. When they are too compliant, the rear end wanders in corners. Firmer replacements cut that motion. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 2 hours of work listed. Get the car aligned once it is back on the ground.
Features
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Install guide: Instructions for fitting are packed in the box.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
| Part Number | W63624 |
| Part Name | Axle Pivot Bushings |
| Vehicle | 1994-1997 Mazda B2300 |
| Chassis Code | B-Series |
| Drivetrain | RWD |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Inside Diameter | 14.3 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes, Grease |
| Length | 51 mm |
| Material | Polyurethane |
| Outside Diameter | 64.60/42.00 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
