Product Details

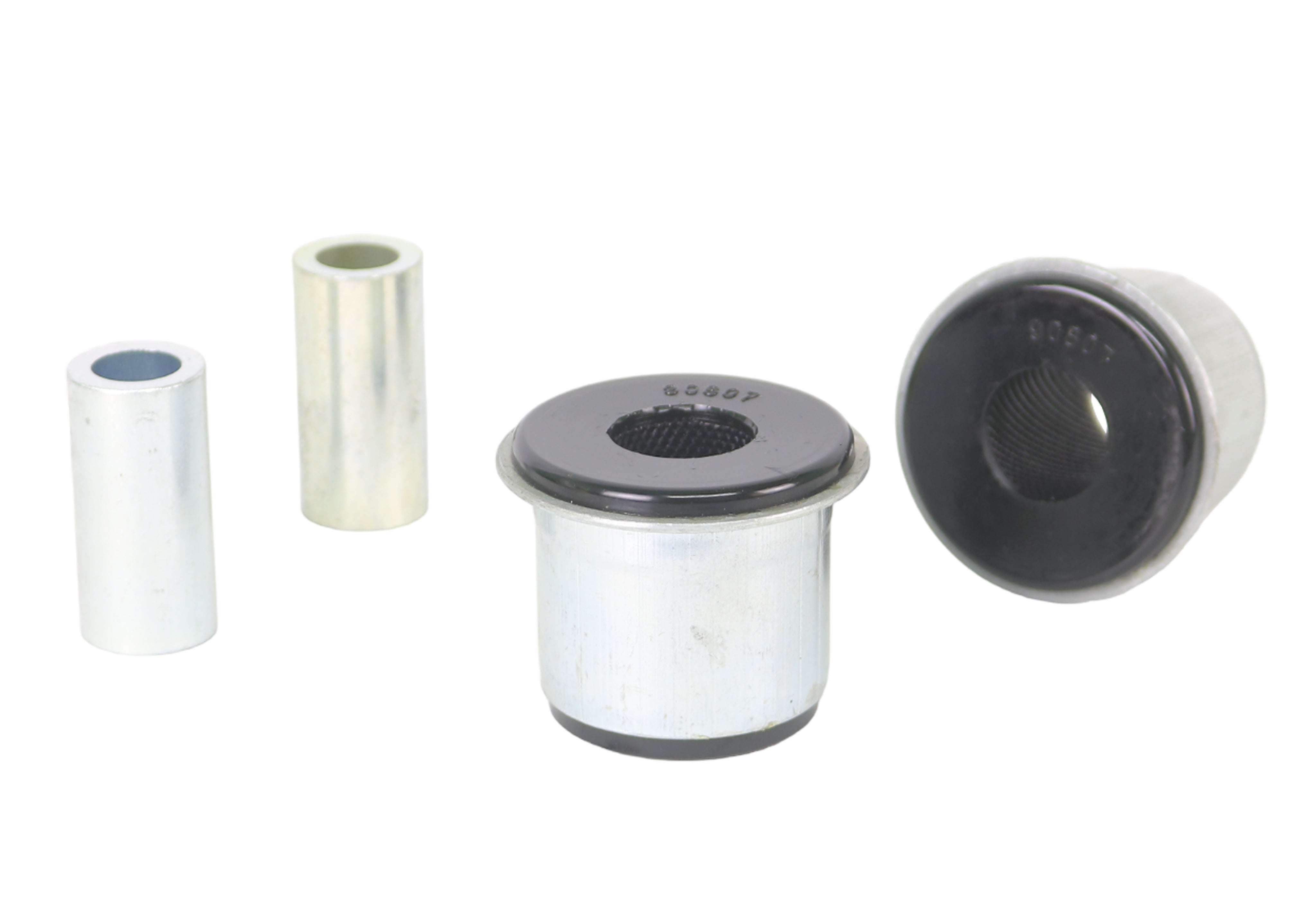

This Whiteline Rear Axle Pivot Bushing Kit fits the 1984-1990 Ford Bronco II. It goes on the rear of the vehicle. Order it as part number W63622. The kit contains 2 shell bushings, 2 tubes, and grease.
On many front-wheel-drive cars the axle at the rear is a beam that attaches to the body through pivot bushings. Those bushings take the cornering and braking loads, and soft or worn ones let the rear end move and steer slightly on its own. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 2 hours of work listed. Plan on a wheel alignment afterward.
Features
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Install guide: Written install instructions are included with the part.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
| Part Number | W63622 |
| Part Name | Axle Pivot Bushings |
| Vehicle | 1984-1990 Ford Bronco II |
| Chassis Code | U13 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Inside Diameter | 14.3 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Shell Bushings, 2 Tubes, Grease |
| Length | 45.8 mm |
| Material | Polyurethane |
| Outside Diameter | 45.92/45.32 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
