Product Details

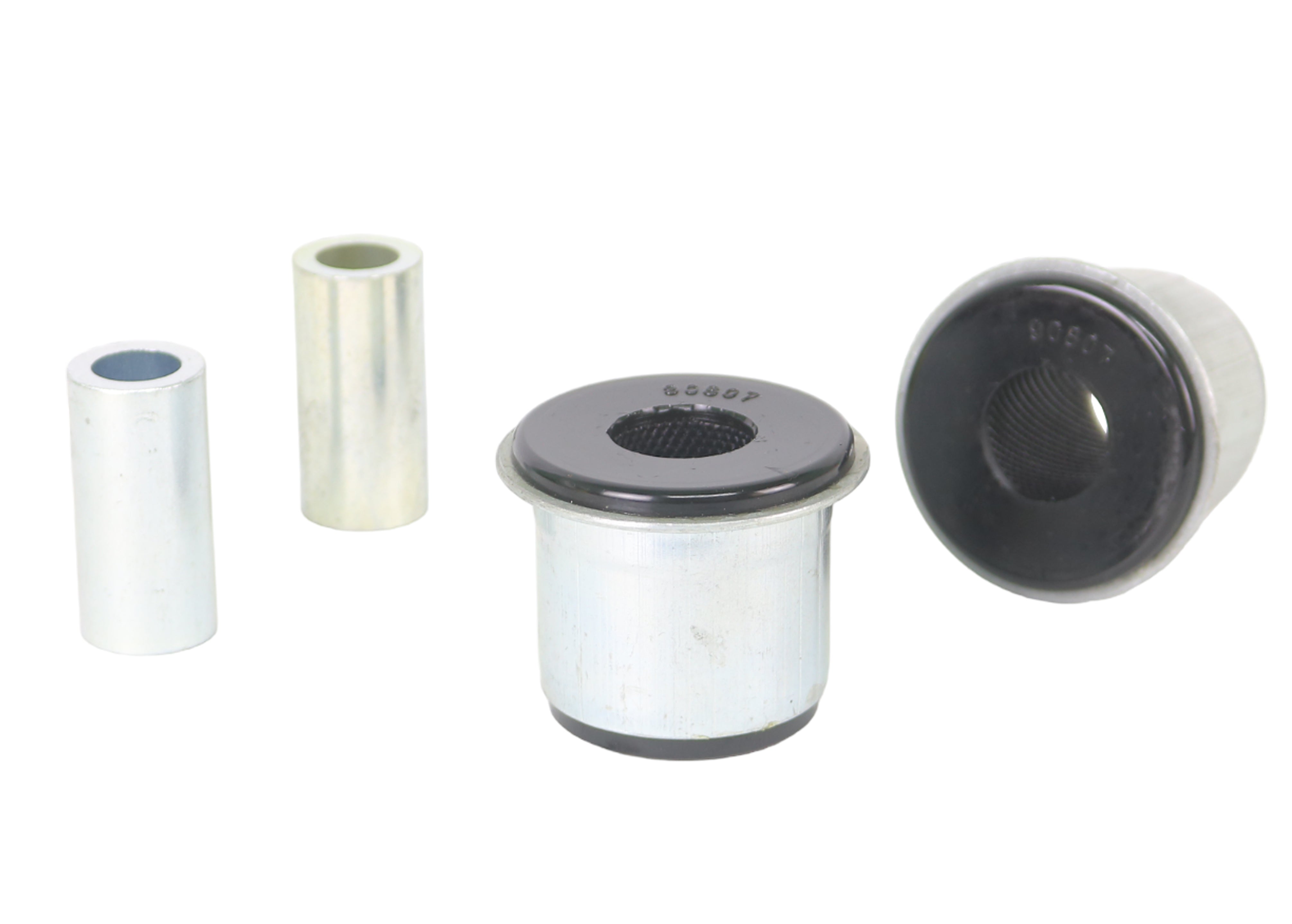

This Whiteline Rear Axle Pivot Bushing Kit fits the 1980-1996 Ford F-250. Whiteline part number: W63622. Placement: rear. Included: 2 shell bushings, 2 tubes, and grease.
The pivot bushings on a beam axle decide how well the rear of the car stays put. When they are too compliant, the rear end wanders in corners. Firmer replacements cut that motion. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 2 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the F-250, see Front Sway Bar Washer Kit, Body Mount Bushing Kit, and Front Shock Absorber Upper Bushing (Koni Shocks Only).
Features
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Install guide: An install guide comes in the box.
Specifications
| Part Number | W63622 |
| Part Name | Axle Pivot Bushings |
| Vehicle | 1980-1996 Ford F-250 |
| Chassis Code | F-Series |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Inside Diameter | 14.3 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Shell Bushings, 2 Tubes, Grease |
| Length | 45.8 mm |
| Material | Polyurethane |
| Outside Diameter | 45.92/45.32 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
