Product Details

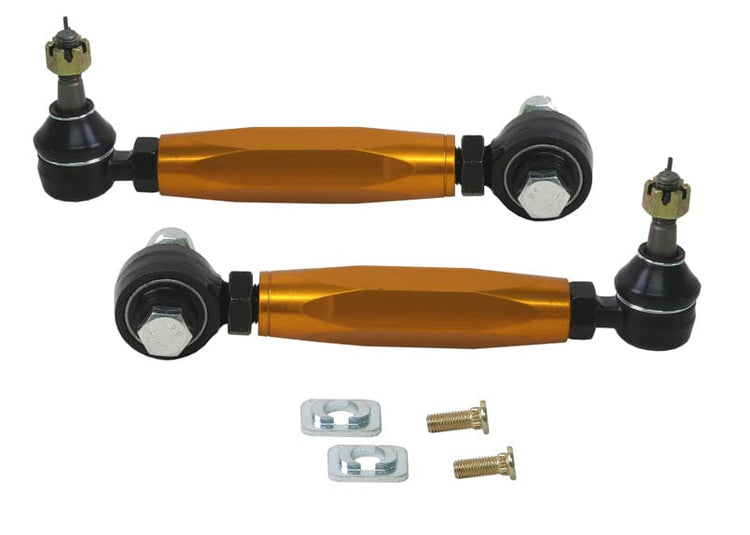

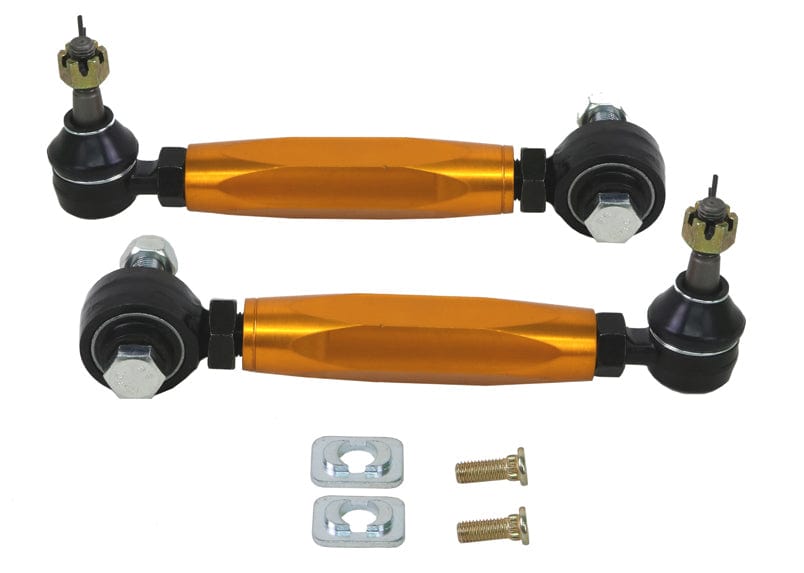

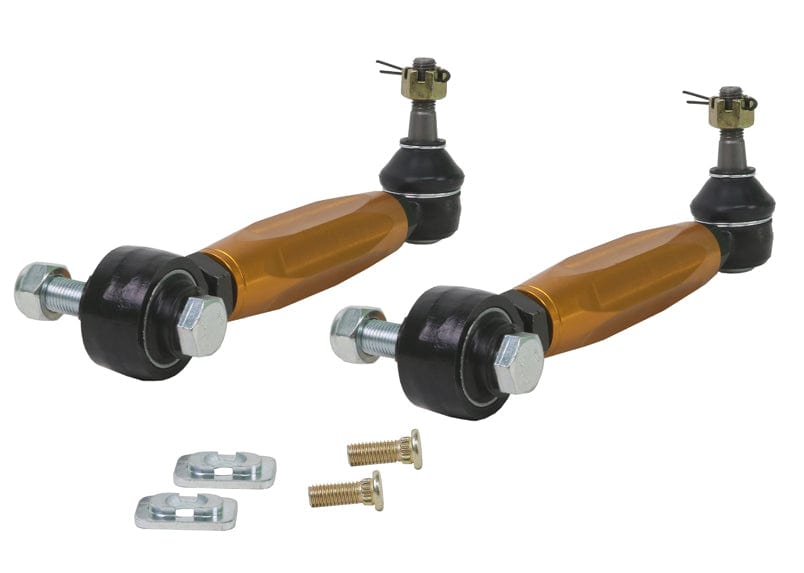

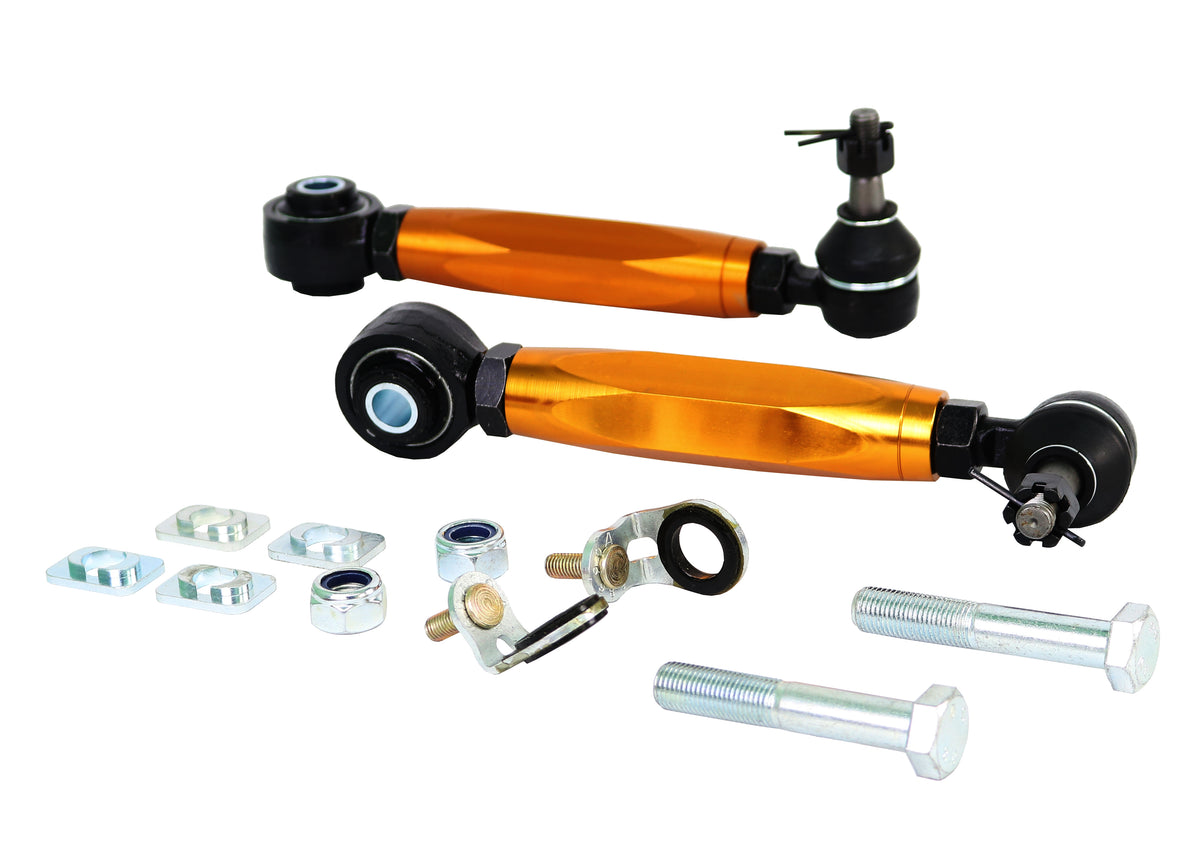

These Whiteline Rear Adjustable Toe Control Arms fit the 2011-2014 Subaru WRX STI Limited (GR/GV). This part is for the rear of the vehicle. The part number is KTA147B. Chassis code: GR/GV. You receive 2 arms, 2 bolts, 2 studs, and 2 washers.

Toe is the angle of the wheel relative to the direction the car is traveling, seen from above. A fixed rear toe arm leaves little room to change it. An adjustable toe arm can be lengthened or shortened, so the alignment shop can set rear toe precisely.

Installation is rated easy, with about 1 hour of work listed. Get the car aligned once it is back on the ground. To go with it on the WRX STI, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Install guide: Written install instructions are included with the part.
Specifications
Part Number KTA147B
Part Name Control Arms
Vehicle 2011-2014 Subaru WRX STI Limited
Drivetrain AWD
Chassis Code GR/GV
Adjustable Yes
Ball Joint Included Yes
Bushings Included Yes
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Arms, 2 Bolts, 2 Studs, 2 Washers
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Complete new arms with 50mm adjustment MOTORSPORT

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011SubaruWRX STIAWDComplete new arms with 50mm adjustment MOTORSPORT
2012SubaruWRX STIAWDComplete new arms with 50mm adjustment MOTORSPORT
2013SubaruWRX STIAWDComplete new arms with 50mm adjustment MOTORSPORT
2014SubaruWRX STIAWDComplete new arms with 50mm adjustment MOTORSPORT
