Product Details

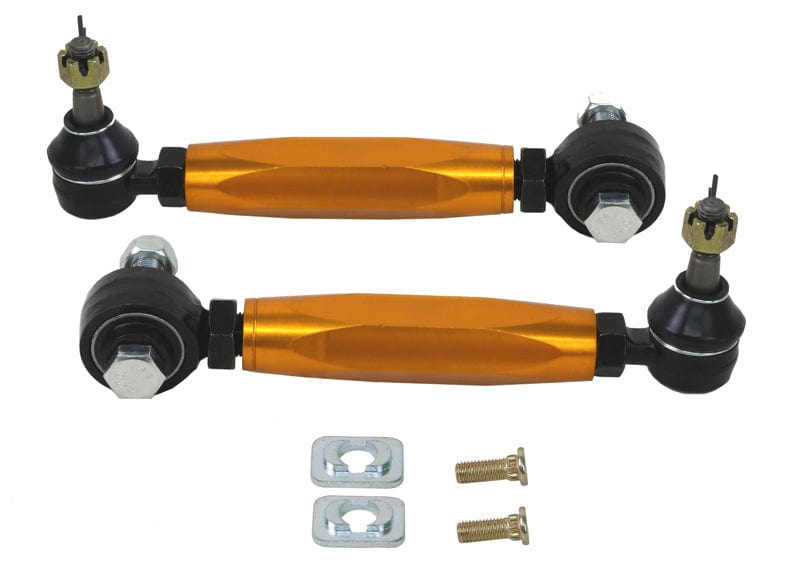

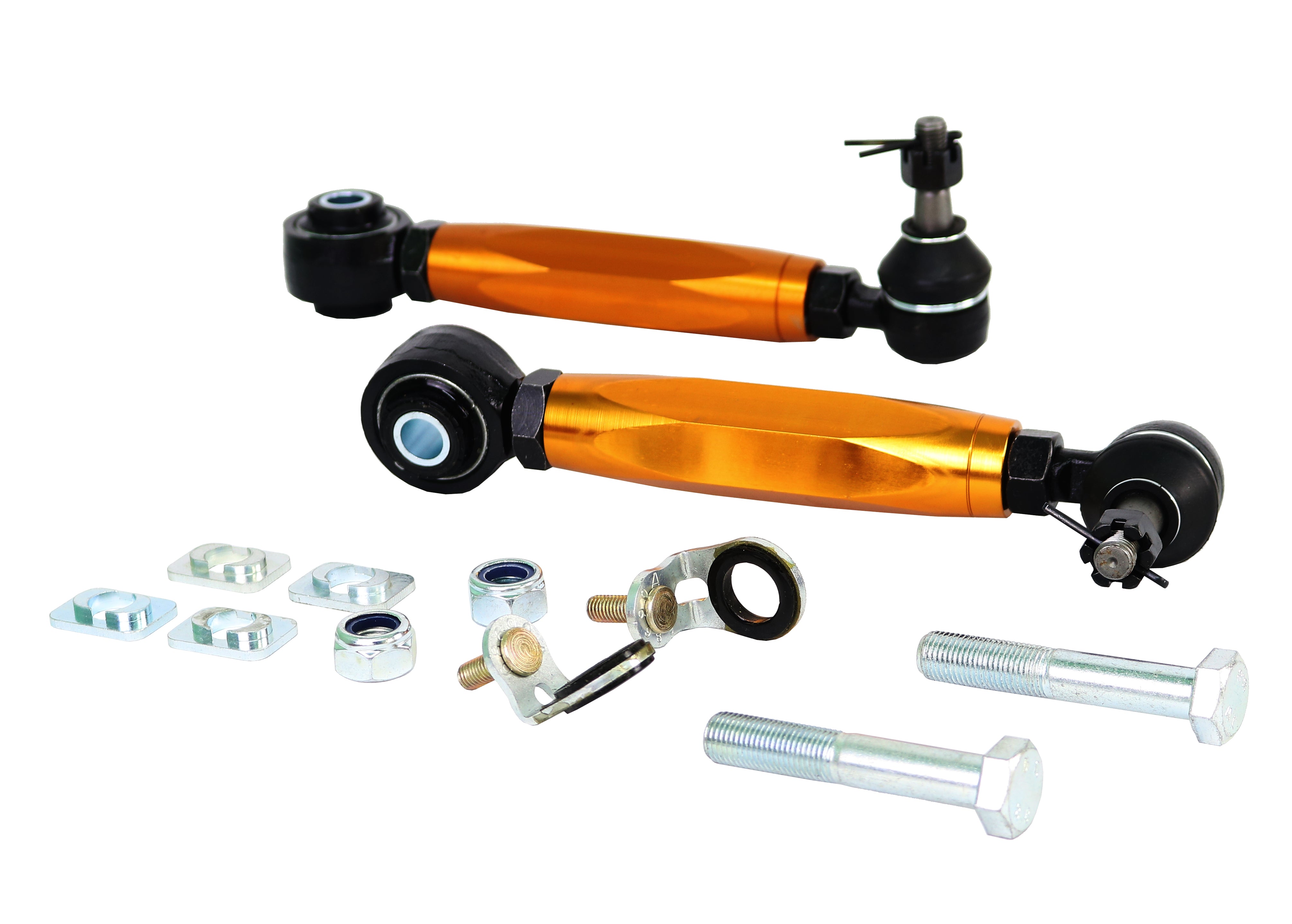

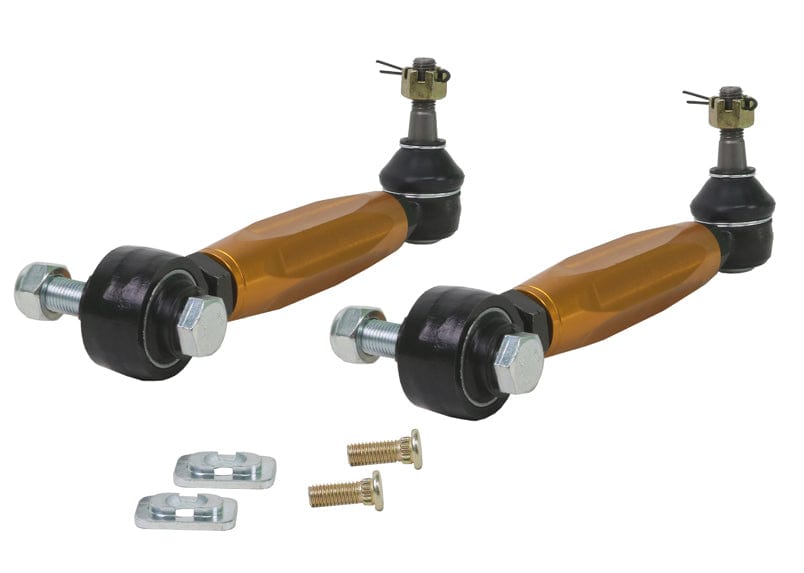

These Whiteline Rear Adjustable Toe Control Arms fit the 2009-2013 Subaru Forester X, X Limited, X Premium (SH). You receive 2 arms, 2 bolts, 2 studs, and 2 washers. It goes on the rear of the vehicle. Whiteline part number: KTA147B.

Toe is the angle of the wheel relative to the direction the car is traveling, seen from above. A fixed rear toe arm leaves little room to change it. An adjustable toe arm can be lengthened or shortened, so the alignment shop can set rear toe precisely.

Installation is rated easy, with about 1 hour of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Forester: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Install guide: Whiteline packs an install guide with it.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number KTA147B
Part Name Control Arms
Vehicle 2009-2013 Subaru Forester X, X Limited, X Premium
Chassis Code SH
Adjustable Yes
Ball Joint Included Yes
Bushings Included Yes
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Arms, 2 Bolts, 2 Studs, 2 Washers
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Complete new arms with 50mm adjustment MOTORSPORT

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruForesterAWDComplete new arms with 50mm adjustment MOTORSPORT
2010SubaruForesterAWDComplete new arms with 50mm adjustment MOTORSPORT
2011SubaruForesterAWDComplete new arms with 50mm adjustment MOTORSPORT
2012SubaruForesterAWDComplete new arms with 50mm adjustment MOTORSPORT
2013SubaruForesterAWDComplete new arms with 50mm adjustment MOTORSPORT
