Product Details

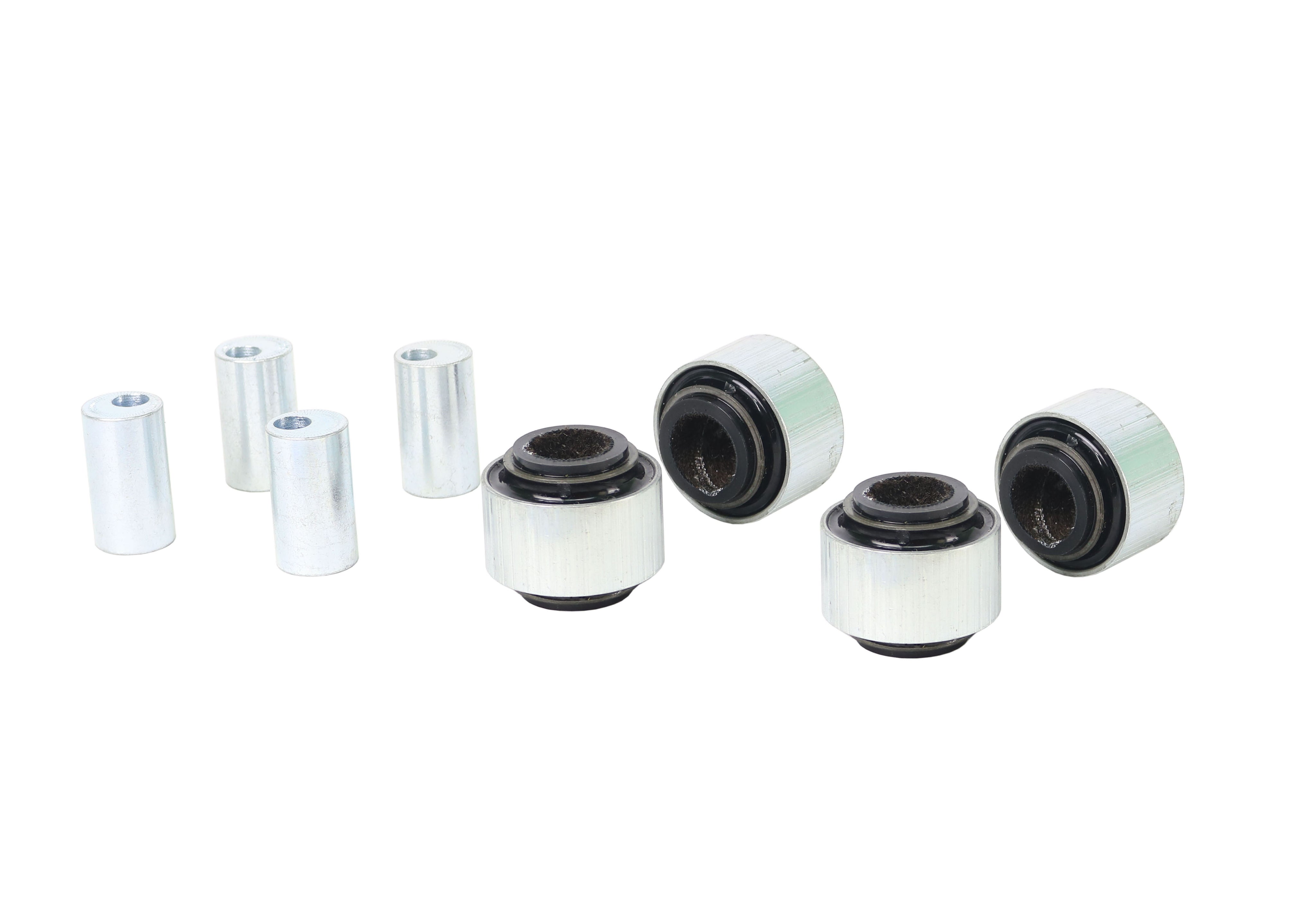

This Whiteline Front Upper Control Arm Bushing Kit fits the 1998-2011 Audi A6 Quattro (C5/C6). Order it as part number KCA420. Whiteline's note for this fit: Adds 0.5 degrees Camber. It goes on the front of the vehicle. You receive 4 shell bushings and 4 tubes.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground.
Features
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Camber adjustment: Aims to keep camber in an effective range as the body rolls.
- Material: Made from polyurethane.
- Finish: The metal parts are powder coated for durability.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
| Part Number | KCA420 |
| Part Name | Control Arm Bushing |
| Vehicle | 1998-2011 Audi A6 Quattro |
| Chassis Code | C5/C6 |
| Bushing 1 Inner Diameter | 10.2 mm |
| Bushing 1 Outer Diameter | 46.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Performance |
| Inside Diameter | 12.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 46.2 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
