Product Details

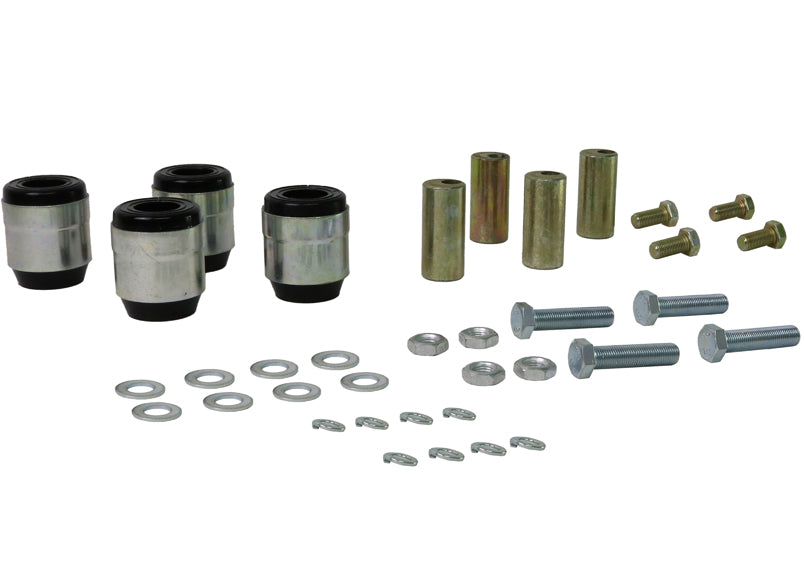

This Whiteline Front Upper Control Arm Bushing Kit - Double Offset fits the 2006-2023 Dodge Charger. Placement: front. In the box: 4 shell bushings, 4 tubes, 8 bolts, 14 washers, and 4 nuts. Application note: Adds .5 degrees camber and caster. The part number is W53338.
A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.
Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. Working on the same car? We also list Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Subframe Mount Bushing for the Charger.
Features
- Hardware: Hardware supplied: mounting hardware.
- Install guide: Whiteline packs an install guide with it.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Material: Made from polyurethane.
Specifications
| Part Number | W53338 |
| Part Name | Control Arm Bushings |
| Vehicle | 2006-2023 Dodge Charger |
| Chassis Code | LX/LD |
| Drivetrain | AWD/RWD |
| Bushing 1 Inner Diameter | 12.5 mm |
| Bushing 1 Outer Diameter | 51.5 mm |
| Bushing 2 Outer Diameter | 50 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes, 8 Bolts, 14 Washers, 4 Nuts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds .5deg camber and caster |
