Whiteline Front Upper and Lower Control Arm Bushing Kit for 2007-2014 Jeep Wrangler (JK) W56423

Whiteline

|

SKU: W56423

Whiteline Front Upper and Lower Control Arm Bushing Kit for 2007-2014 Jeep Wrangler (JK)

$120.49

MSRP $133.88 You save $13.39

Ask a question
In stock, ready to ship

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

All Whiteline products, except those listed below, are covered by a lifetime warranty against manufacturing defects in material and workmanship, valid for the original vehicle the product was installed on.

Whiteline Ball Joints, Tie Rod Ends, Bearings, Links and Springs are covered for 3 years or 60,000 km (36,000 miles), whichever comes first.

Exclusions
The warranty does not cover:

  • Incorrect installation or misuse.
  • Modification or alteration of parts.
  • Damage due to competition, motorsport, or off-road use.
  • Wear and tear from normal use.
  • Accidental or collision damage.

More Information

Product Details

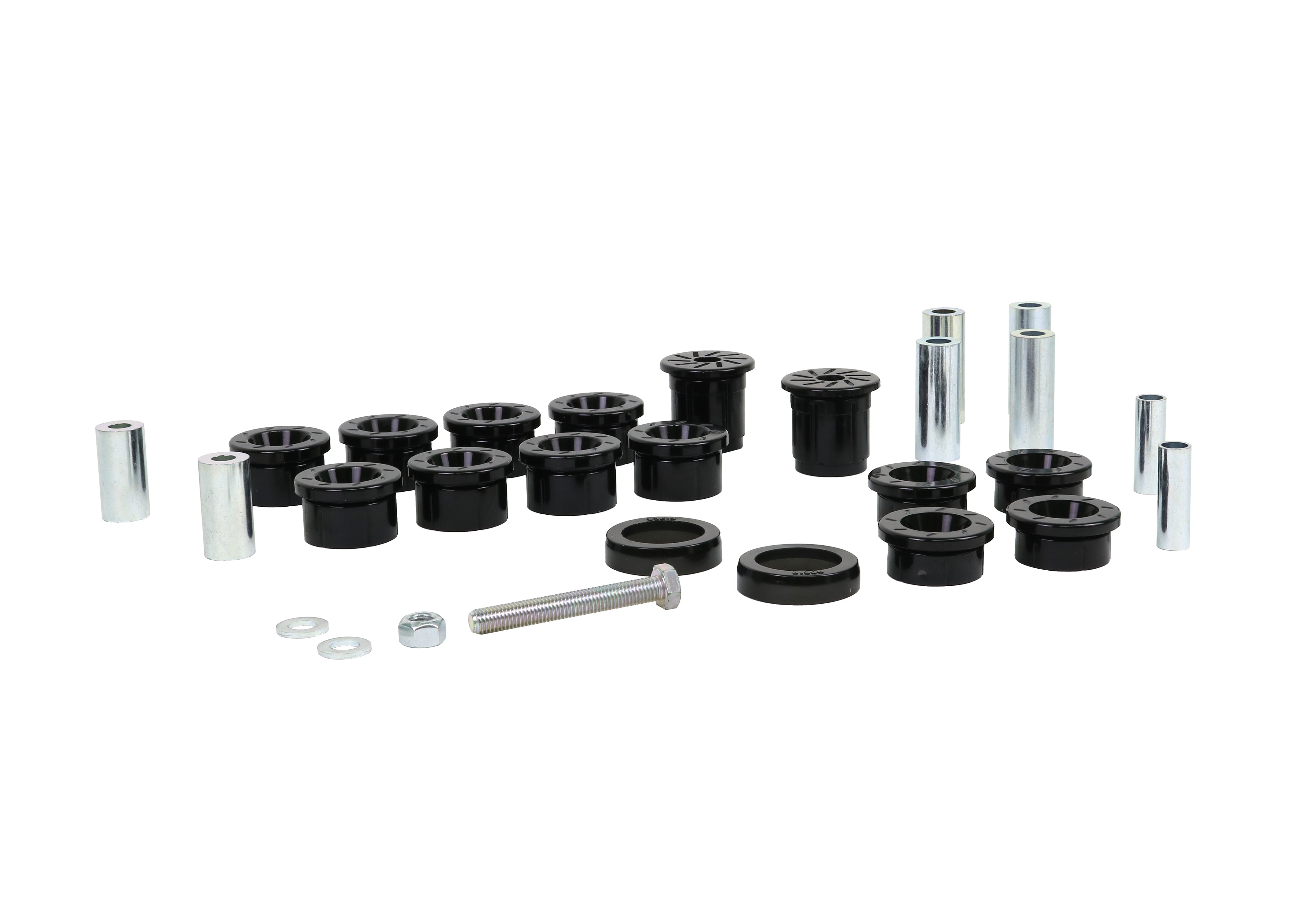

This Whiteline Front Upper and Lower Control Arm Bushing Kit fits the 2007-2014 Jeep Wrangler (JK). Application note: Must reuse existing metal shells in upper axle position. It goes on the front of the vehicle. The kit contains 16 bushings, 8 tubes, 1 bolt, 2 washers, and 1 nut. Order it as part number W56423.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely.

Expect a difficult job of about 3 hours. Plan on a wheel alignment afterward. Working on the same car? We also list Body Mount Bushing Kit, Front Sway Bar Link Bushing Kit, and 22mm Rear Sway Bar Bushing Kit for the Wrangler.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Install guide: Written install instructions are included with the part.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Easy to fit: Designed so the install needs no specialized skills or tools.
Specifications
Part Number W56423
Part Name Control Arm Bushings
Vehicle 2007-2014 Jeep Wrangler
Chassis Code JK
Drivetrain 4WD/RWD
Bushing 2 Inner Diameter 14.3 mm
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 16 Bushings, 8 Tubes, 1 Bolt, 2 Washers, 1 Nut
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Must reuse existing metal shells in upper axle position.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2007JeepWranglerRWDMust reuse existing metal shells in upper axle position.
2008JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2008JeepWranglerRWDMust reuse existing metal shells in upper axle position.
2009JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2009JeepWranglerRWDMust reuse existing metal shells in upper axle position.
2010JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2010JeepWranglerRWDMust reuse existing metal shells in upper axle position.
2011JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2011JeepWranglerRWDMust reuse existing metal shells in upper axle position.
2012JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2012JeepWranglerRWDMust reuse existing metal shells in upper axle position.
2013JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2013JeepWranglerRWDMust reuse existing metal shells in upper axle position.
2014JeepWrangler4WDMust reuse existing metal shells in upper axle position.
2014JeepWranglerRWDMust reuse existing metal shells in upper axle position.
