Product Details

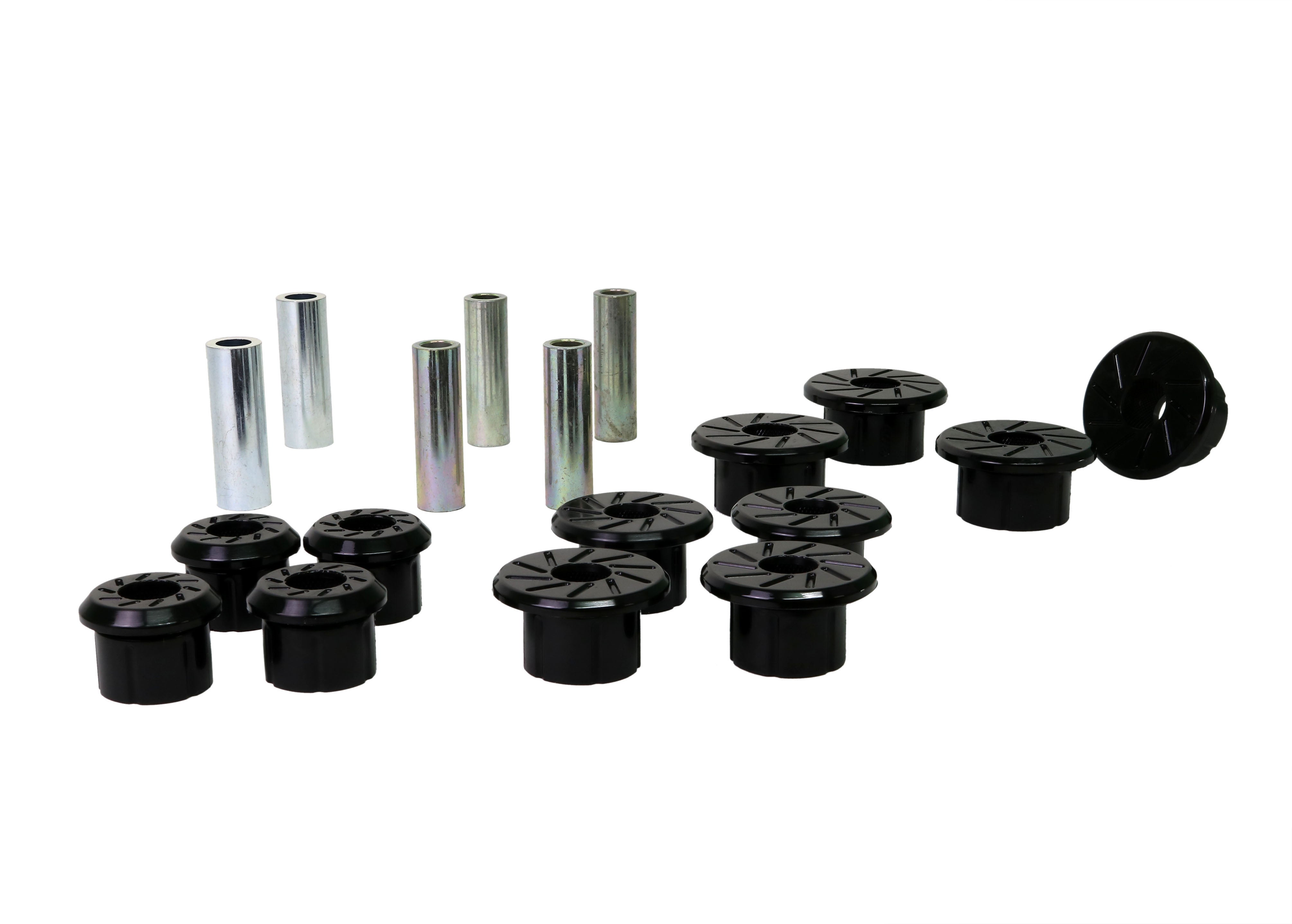

This Whiteline Front Upper and Lower Control Arm Bushing Kit fits the 2000-2007 Chevrolet Suburban 1500 4WD. You receive 12 bushings, 6 tubes, and grease. Trim named on the listing: 1500. This listing is for 4WD models. Position: front. The part number is W56420. Application note: Suits Torsion Bar Suspension Vehicles Only.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Suburban: Front Sway Bar Mount and Link Bushing Kit.
Features
- Install guide: Written install instructions are included with the part.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
| Part Number | W56420 |
| Part Name | Control Arm Bushings |
| Vehicle | 2000-2007 Chevrolet Suburban 1500 |
| Chassis Code | GMT800 |
| Drivetrain | 4WD |
| Bushing 1 Inner Diameter | 16.2 mm |
| Bushing 1 Length | 92 mm |
| Bushing 1 Outer Diameter | 45 mm |
| Bushing 2 Inner Diameter | 16.2 mm |
| Bushing 2 Length | 71 mm |
| Bushing 2 Outer Diameter | 44.7 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 12 |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 12 Bushings, 6 Tubes, Grease |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 45 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Suits Torsion Bar Suspension Vehicles Only |
