Product Details

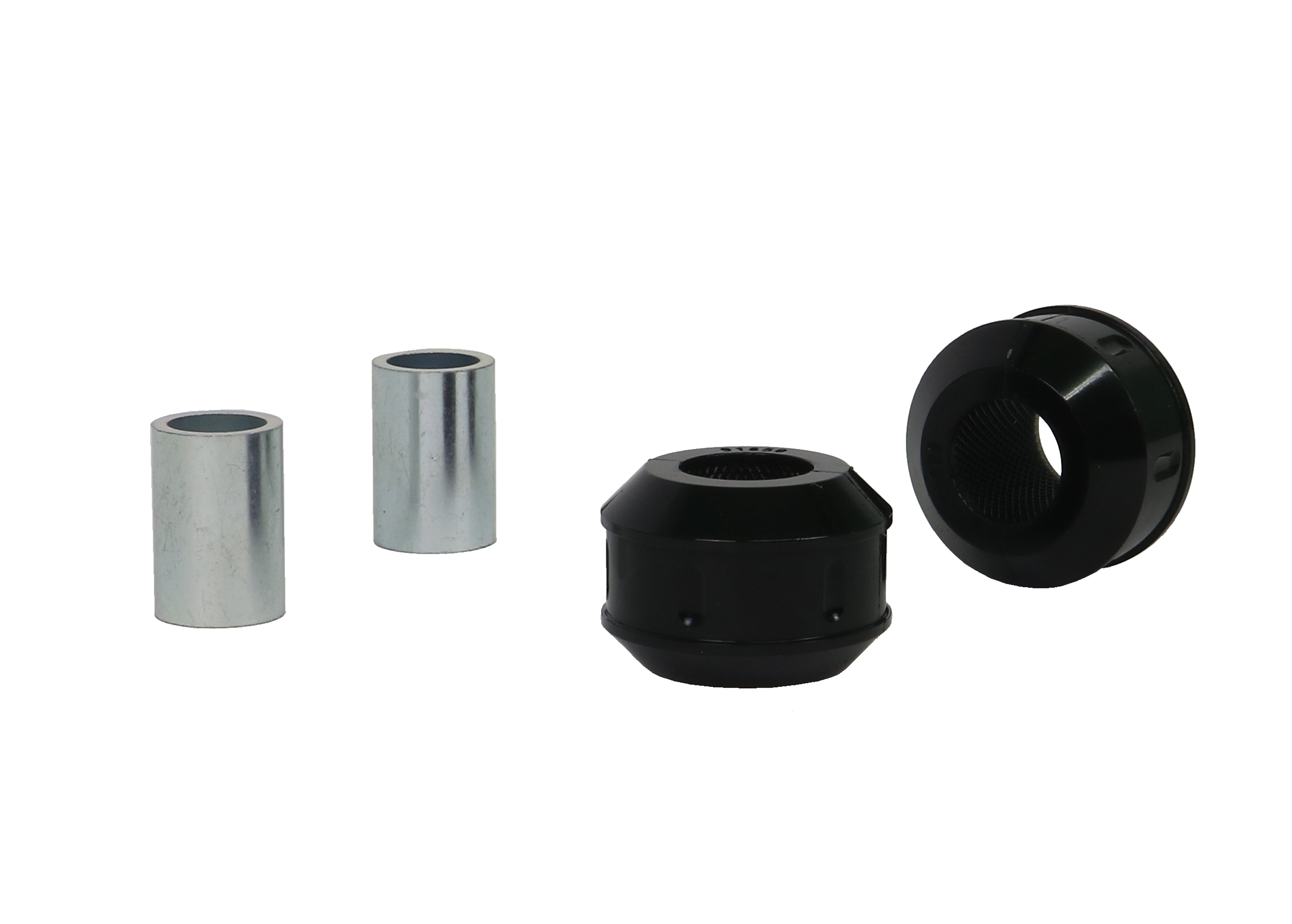

This Whiteline Front Torsion Bar Bushing Kit fits the 2001-2010 GMC Sierra 2500 HD. The part number is W93527. It goes on the front of the vehicle. The kit contains 2 bushings, 2 tubes, an install guide, and grease. The chassis code on the listing is GMT800/GMT900.
A torsion bar front end uses a steel bar that twists to do the job of a coil spring, and the bar is held at its mounts by bushings. When they soften or wear, the bar can move in its mount, which shows up as noise and a vague front end. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a moderate job of about 1 hour. Plan on a wheel alignment afterward. To go with it on the Sierra 2500 HD, see Body Mount Bushing Kit, Front Upper and Lower Control Arm Bushing Kit, and Transmission Mount Bushing.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Install guide: Written install instructions are included with the part.
Specifications
| Part Number | W93527 |
| Part Name | Torsion Bar Bushings |
| Vehicle | 2001-2010 GMC Sierra 2500 HD |
| Chassis Code | GMT800/GMT900 |
| Bushing Color | Black |
| Bushing Height | 37.5 mm |
| Bushing Length | 54 mm |
| Bushing Material | Polyurethane |
| Grade Type | Regular |
| Inside Diameter | 19.5 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings, 2 Tubes, Install Guide, Grease |
| Outside Diameter | 52 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
