Product Details

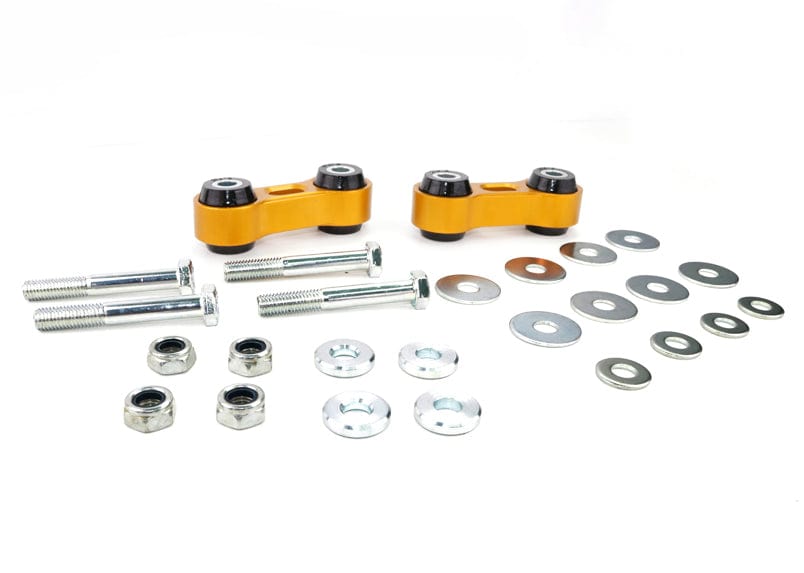

This Whiteline Front Sway Bar Link (OEM Bar Only) fits the 2005-2006 Subaru Outback R, XT (BP). Part number KLC32. Placement: front. Whiteline's note for this fit: Replaces OE Ball Joint Link & OE Style Bar Only. In the box: 2 links, 4 spacers, 4 bolts, 12 washers, and 4 nuts.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in.
Expect an easy job of about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Install guide: An install guide comes in the box.
- Construction: Alloy construction keeps the weight down while handling the loads.
- Bushing compound: The synthetic elastomer used is low in compliance, so it flexes less.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
| Part Number | KLC32 |
| Part Name | Sway Bar Link |
| Vehicle | 2005-2006 Subaru Outback R, XT |
| Chassis Code | BP |
| Bushing Material | Polyurethane |
| Grade Type | Performance |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 4 Spacers, 4 Bolts, 12 Washers, 4 Nuts |
| Length | 65 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Replaces OE Ball Joint Link & OE Style Bar Only |
