Product Details

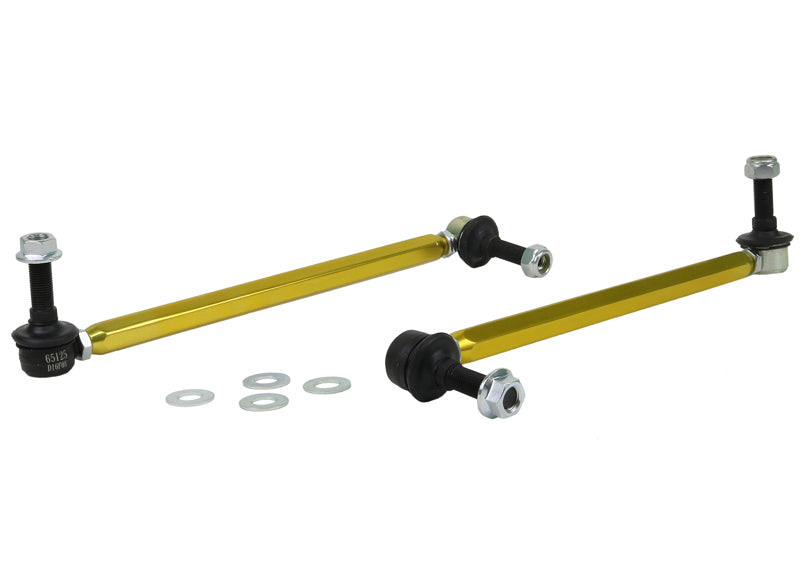

This Whiteline Front Sway Bar Link Kit fits the 2022-2024 Toyota Corolla Cross. Whiteline part number: KLC180-315. You receive 2 links. Placement: front.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Whiteline rates the install as easy and lists about 1 hour. No alignment is needed afterward. To go with it on the Corolla Cross, see Adjustable Rear Sway Bar Link Kit.
Features
- Easy to fit: Designed for an easy install with ordinary shop equipment.
- Hardware: Supplied with locking nuts and washers.
- Install guide: An install guide comes in the box.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | KLC180-315 |
| Part Name | Sway Bar Links |
| Vehicle | 2022-2024 Toyota Corolla Cross |
| Chassis Code | GA-C |
| Drivetrain | AWD/FWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 310-335 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | - |
