Product Details

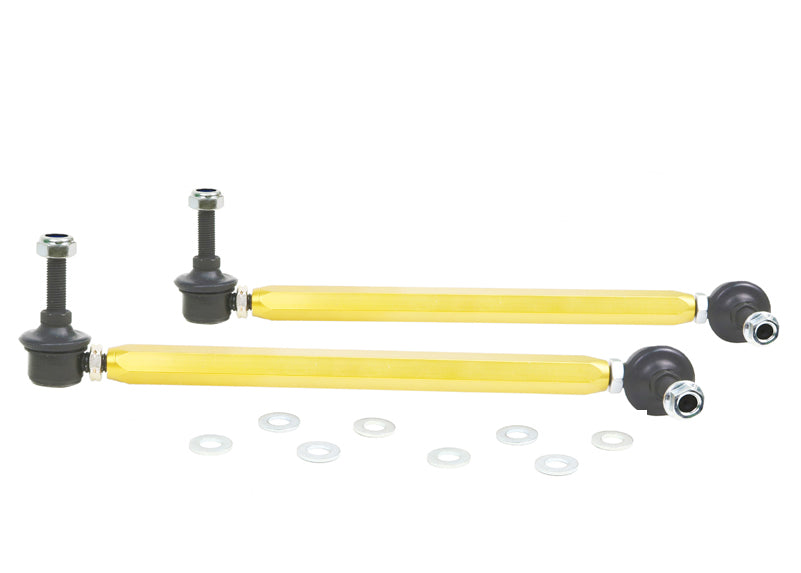

Fitted to the 2001-2011 Mercedes-Benz C200 C-Class (W203/W204): the Whiteline Front Sway Bar Link. Chassis code: W203/W204. Whiteline's note for this fit: Adjustable Extra Heavy Duty. Order it as part number KLC140-295. Placement: front. In the box: 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the C200 C-Class: Rear Sway Bar Link, Heavy Duty Blade Adjustable 24mm Front Sway Bar, and Heavy Duty 22mm Rear Sway Bar.

Features

  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Install guide: Written install instructions are included with the part.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
Specifications
Part Number KLC140-295
Part Name Sway Bar Link
Vehicle 2001-2011 Mercedes-Benz C200 C-Class
Chassis Code W203/W204
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 290-315 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2001Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2002Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2003Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2004Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2005Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2006Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2007Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2008Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2009Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2010Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
2011Mercedes-BenzC200Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm.
