Product Details

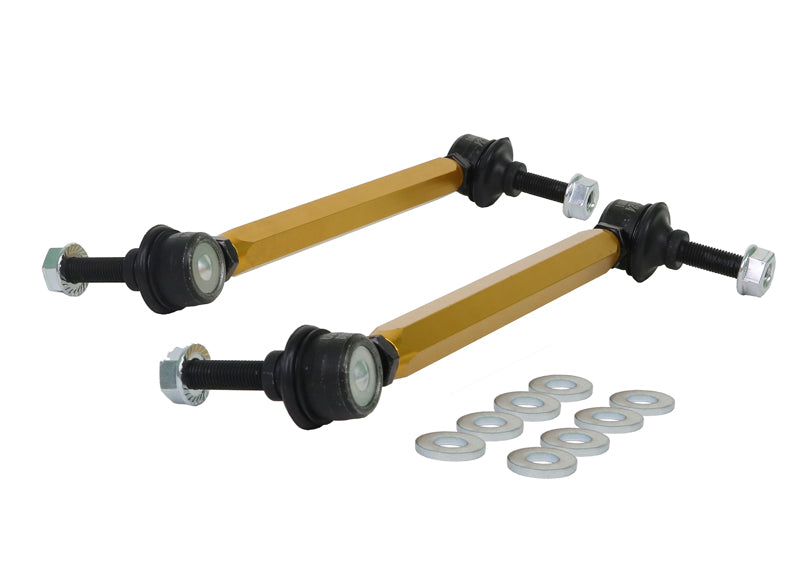

This Whiteline Front Sway Bar Link Assembly fits the 2017-2020 BMW 430i 4 Series. Placement: front. Included: 2 links. It is listed for the F32/F33 chassis. Whiteline's note for this fit: Adjustable extra heavy duty. Order it as part number KLC140-255.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the 430i 4 Series: Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Lower Trailing Arm Bushing.
Features
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Construction: The body is made from high-grade alloy for strength without added weight.
- Install guide: An install guide comes in the box.
- Ball joints: Steel ball joint ends are built for heavy loads and free movement.
Specifications
| Part Number | KLC140-255 |
| Part Name | Sway Bar Link |
| Vehicle | 2017-2020 BMW 430i 4 Series |
| Chassis Code | F32/F33 |
| Drivetrain | RWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 250-275 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm. |
