Product Details

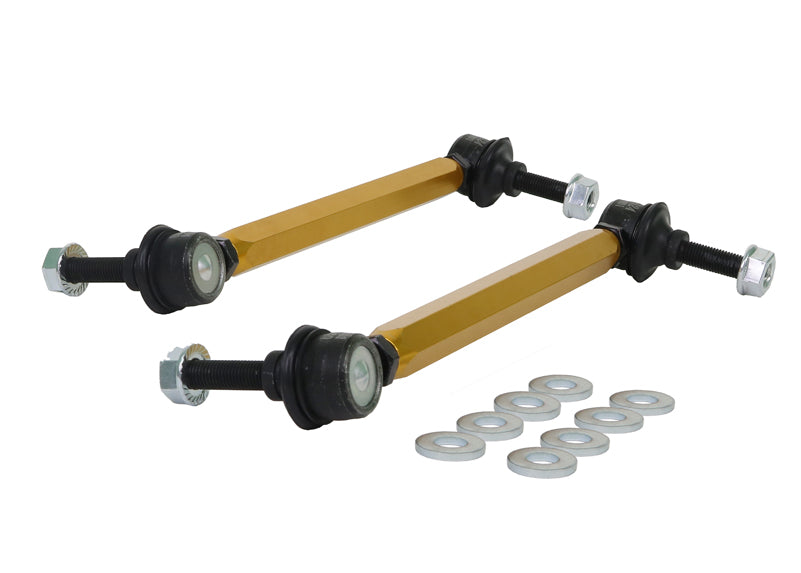

This Whiteline Front Sway Bar Link Assembly fits the 2016-2020 BMW 420i 4 Series (F32/F33/F36). It goes on the front of the vehicle. In the box: 2 links. The part number is KLC140-255. Application note: Adjustable extra heavy duty.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. We also list Adjustable Rear Sway Bar Link and Front Lower Radius Arm Bushing for the 420i 4 Series.

Features

  • Hardware: Also in the box: locking nuts and washers.
  • Install guide: Step-by-step installation instructions come with it.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 2016-2020 BMW 420i 4 Series
Chassis Code F32/F33/F36
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2016BMW420iAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2017BMW420iAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2018BMW420iAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2019BMW420iAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2020BMW420iAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
