Product Details

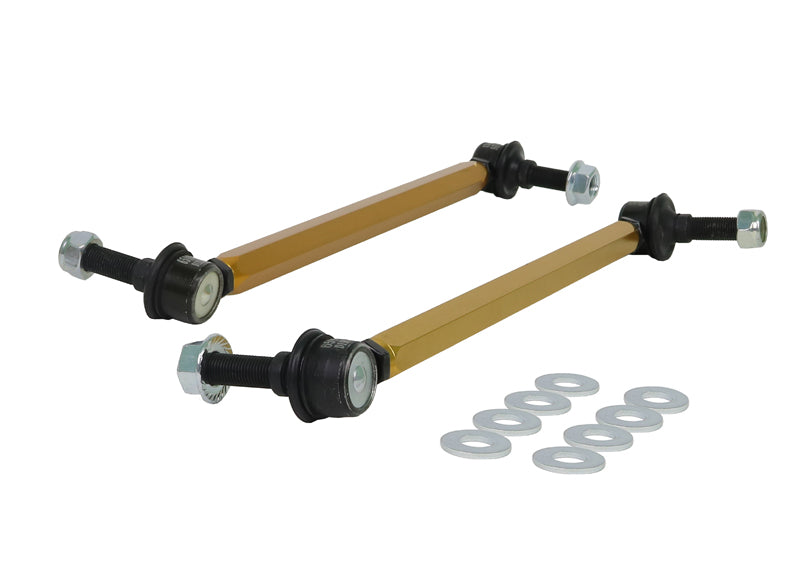

This Whiteline Front Sway Bar Link Assembly fits the 2015-2019 Mercedes-Benz GLA45 AMG GLA-Class. Included: 2 links. Placement: front. Part number KLC180-335. It is listed for the X156 chassis. Application note: Adjustable extra heavy duty.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. To go with it on the GLA45 AMG GLA-Class, see Adjustable Rear Sway Bar Link.
Features
- Install guide: Instructions for fitting are packed in the box.
- Construction: The body is made from high-grade alloy for strength without added weight.
- Rigid design: A stiffer design than the factory part gives a more immediate response.
- Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Hardware: Supplied with locking nuts and washers.
Specifications
| Part Number | KLC180-335 |
| Part Name | Sway Bar Link |
| Vehicle | 2015-2019 Mercedes-Benz GLA45 AMG GLA-Class |
| Chassis Code | X156 |
| Drivetrain | AWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 330-355 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm. |
