Product Details

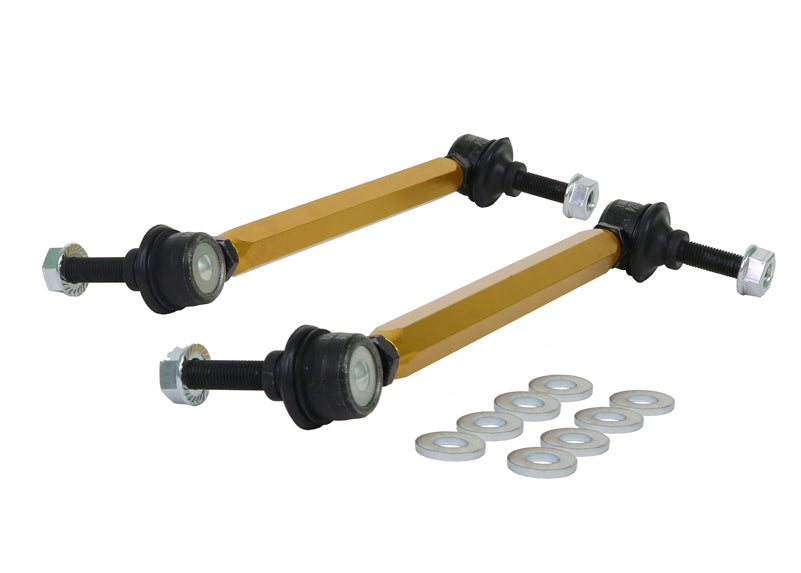

This Whiteline Front Sway Bar Link Assembly fits the 2015-2018 BMW M3 (F80). Part number KLC140-255. The kit contains 2 links. It goes on the front of the vehicle. Application note: Adjustable extra heavy duty.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the BMW M3: Adjustable Sway Bar Vehicle Link Kit, Adjustable Rear Sway Bar Link Kit, and Rear Lower Trailing Arm Bushing.

Features

  • Construction: Made from strong, light alloy.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Install guide: An install guide comes in the box.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Hardware: Supplied with locking nuts and washers.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 2015-2018 BMW M3
Chassis Code F80
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015BMWM3RWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2016BMWM3RWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2017BMWM3RWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2018BMWM3RWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
