Product Details

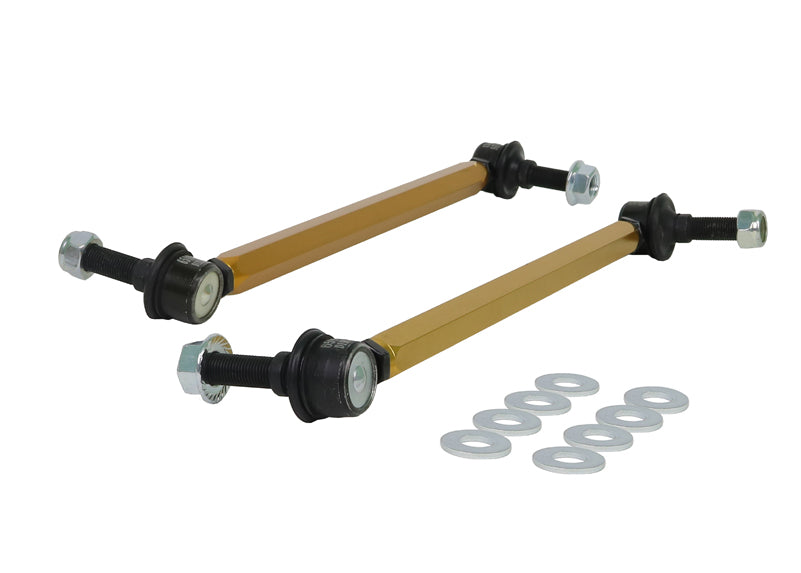

This Whiteline Front Sway Bar Link Assembly fits the 2010-2016 Mercedes-Benz E550 E-Class (W212). Whiteline's note for this fit: Adjustable extra heavy duty. In the box: 2 links. Part number KLC180-335. It goes on the front of the vehicle.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment.
Features
- Anodized alloy: The alloy carries an anodized finish for durability.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Hardware: The kit includes locking nuts and washers.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Construction: Alloy construction keeps the weight down while handling the loads.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
| Part Number | KLC180-335 |
| Part Name | Sway Bar Link |
| Vehicle | 2010-2016 Mercedes-Benz E550 E-Class |
| Chassis Code | W212 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 330-355 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm. |
