Product Details

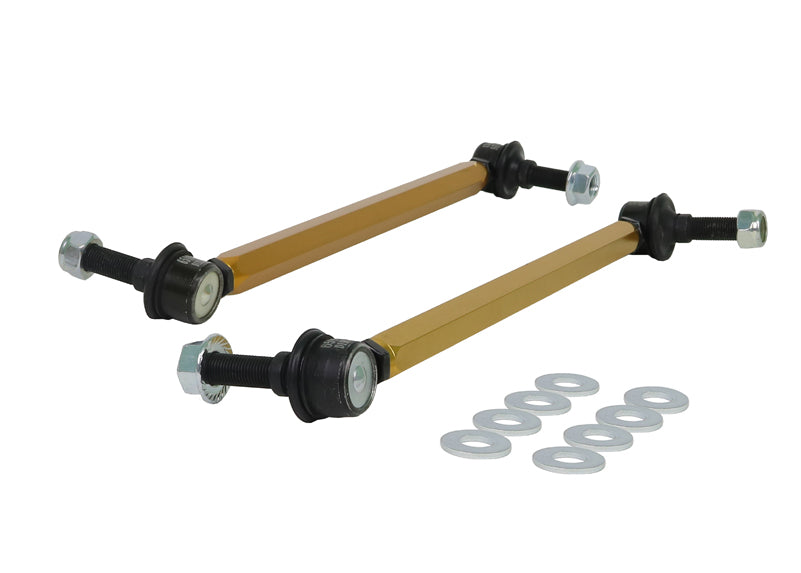

This Whiteline Front Sway Bar Link Assembly fits the 2010-2016 Mercedes-Benz E500 E-Class (W212). Included: 2 links. Position: front. Application note: Adjustable extra heavy duty. Whiteline part number: KLC180-335.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Expect a moderate job of about 1 hour. A wheel alignment is not required.
Features
- Install guide: Step-by-step installation instructions come with it.
- Hardware: Hardware supplied: locking nuts and washers.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Pre-greased: Pre-greased at the factory so it can be fitted right away.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
Specifications
| Part Number | KLC180-335 |
| Part Name | Sway Bar Link |
| Vehicle | 2010-2016 Mercedes-Benz E500 E-Class |
| Chassis Code | W212 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 330-355 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm. |
