Product Details

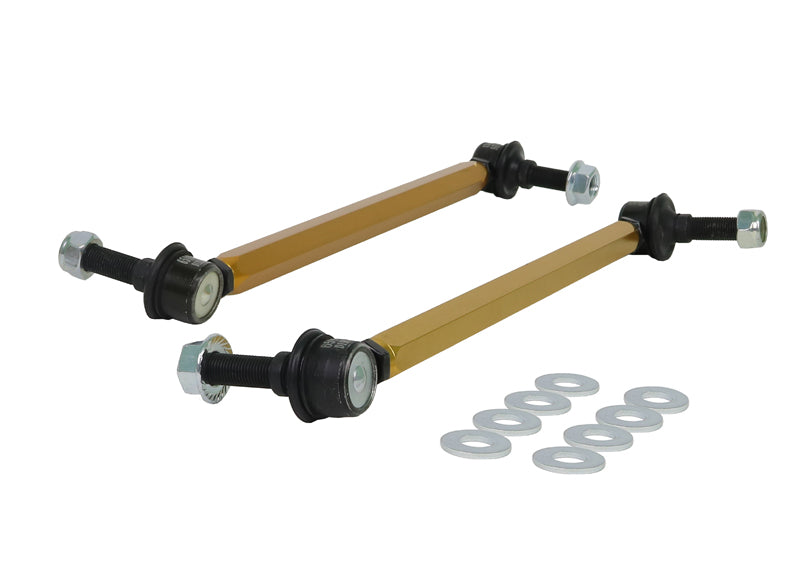

This Whiteline Front Sway Bar Link Assembly fits the 2010-2011 Mercedes-Benz E300 E-Class (W212). It goes on the front of the vehicle. Whiteline part number: KLC180-335. You receive 2 links. Whiteline's note for this fit: Adjustable extra heavy duty.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required.

Features

  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
Specifications
Part Number KLC180-335
Part Name Sway Bar Link
Vehicle 2010-2011 Mercedes-Benz E300 E-Class
Chassis Code W212
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 330-355 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2010Mercedes-BenzE300Adjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm.
2011Mercedes-BenzE300Adjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm.
