Product Details

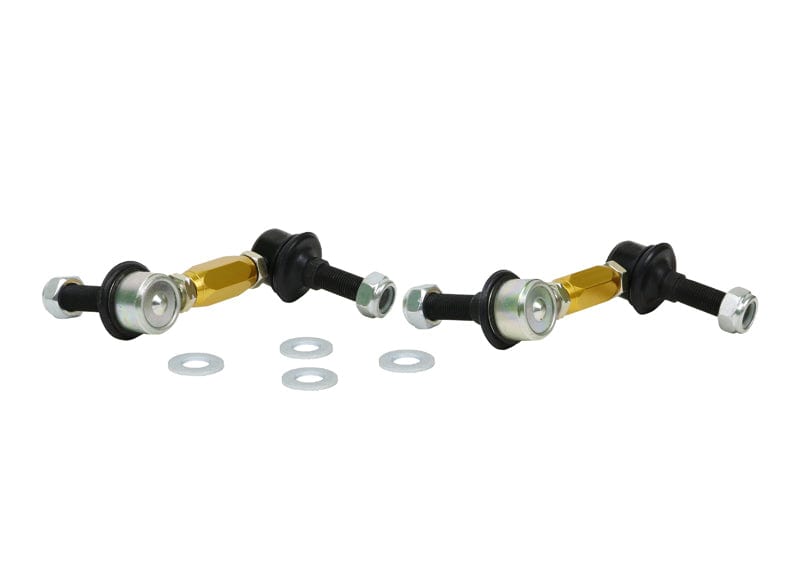

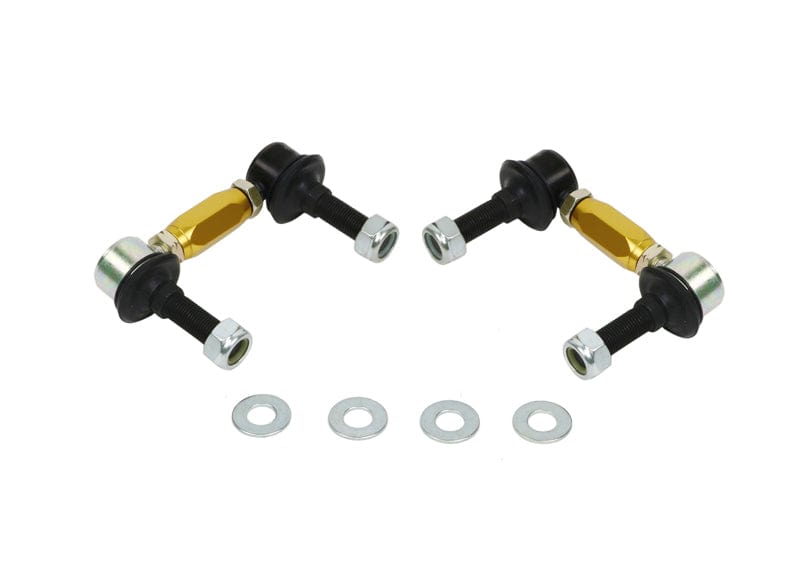

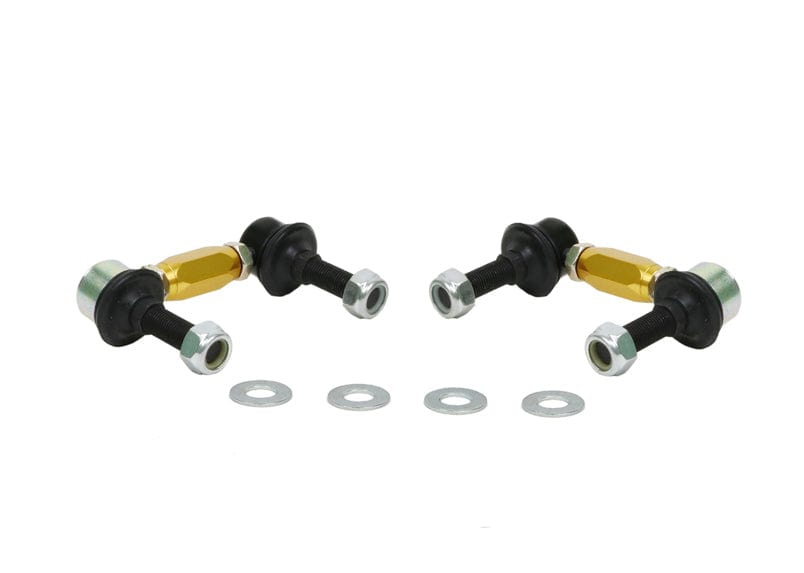

This Whiteline Front Sway Bar Link Assembly fits the 2011-2015 Nissan Xterra PRO-4X (N50). In the box: 2 links and 4 washers. It goes on the front of the vehicle. Whiteline's note for this fit: Adjustable Extra Heavy Duty. Order it as part number KLC180-090.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Xterra: Front Lower Inner Control Arm Bushing, Rear Essential Vehicle Kit, and Front Upper Control Arm Set - Fixed Offset.

Features

  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number KLC180-090
Part Name Sway Bar Link
Vehicle 2011-2015 Nissan Xterra PRO-4X
Drivetrain RWD/4WD
Chassis Code N50
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Washers
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2011NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2012NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2012NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2013NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2013NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2014NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2014NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2015NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2015NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
