Product Details

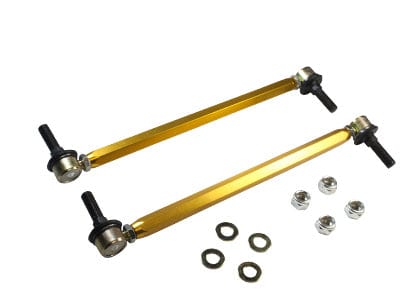

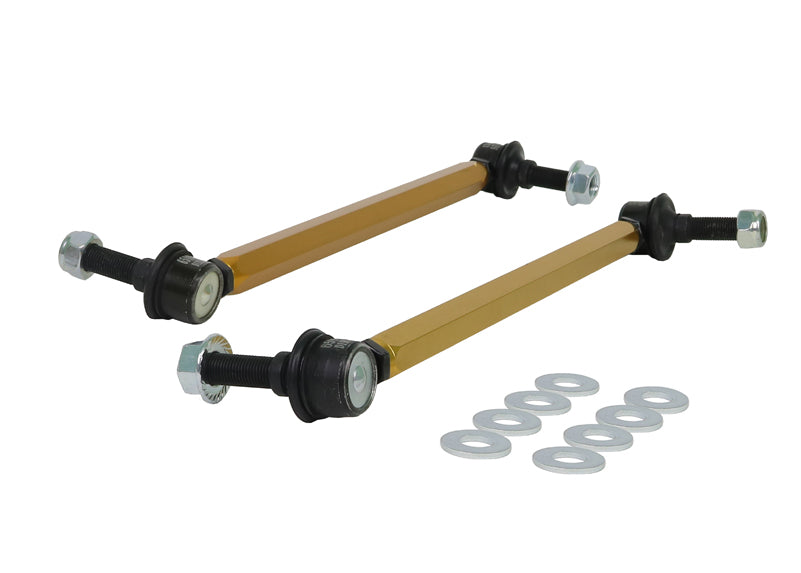

This Whiteline Front Sway Bar Link Assembly fits the 2010-2011 Hyundai Genesis Coupe 3.8 (BH). Position: front. Part number KLC180-335. You receive 2 links. Application note: Adjustable extra heavy duty.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. A wheel alignment is not required. We also list 14mm Adjustable Front Camber Bolts, Front and Rear Sway Bar Kit, and Heavy Duty Blade Adjustable 26mm Rear Sway Bar for the Genesis Coupe.

Features

  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Install guide: Instructions for fitting are packed in the box.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
Specifications
Part Number KLC180-335
Part Name Sway Bar Link
Vehicle 2010-2011 Hyundai Genesis Coupe 3.8
Chassis Code BH
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 330-355 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010HyundaiGenesis CoupeRWDAdjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm.
2011HyundaiGenesis CoupeRWDAdjustable extra heavy duty. Length 330-355mm. Bolt Diameter 12mm.
