Product Details

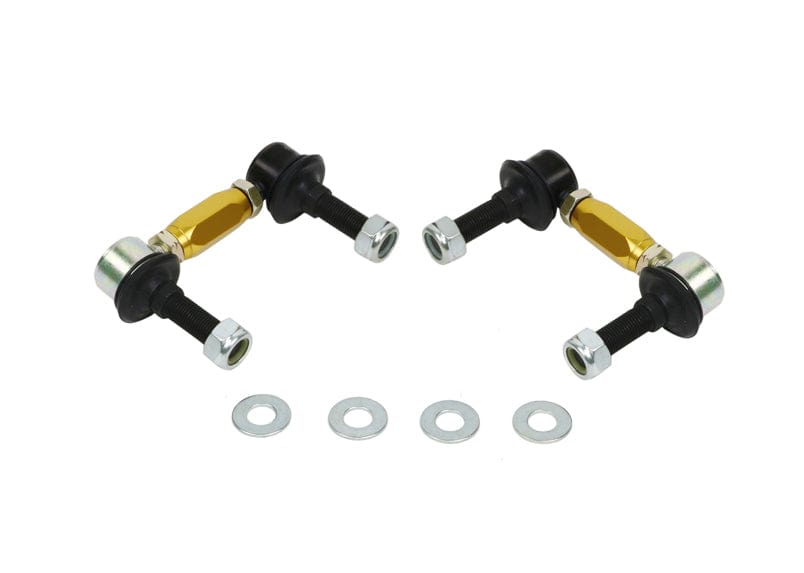

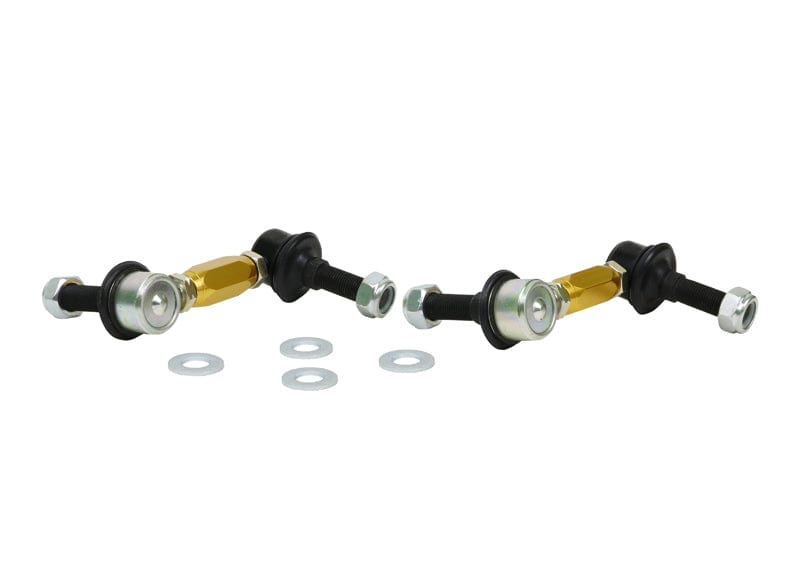

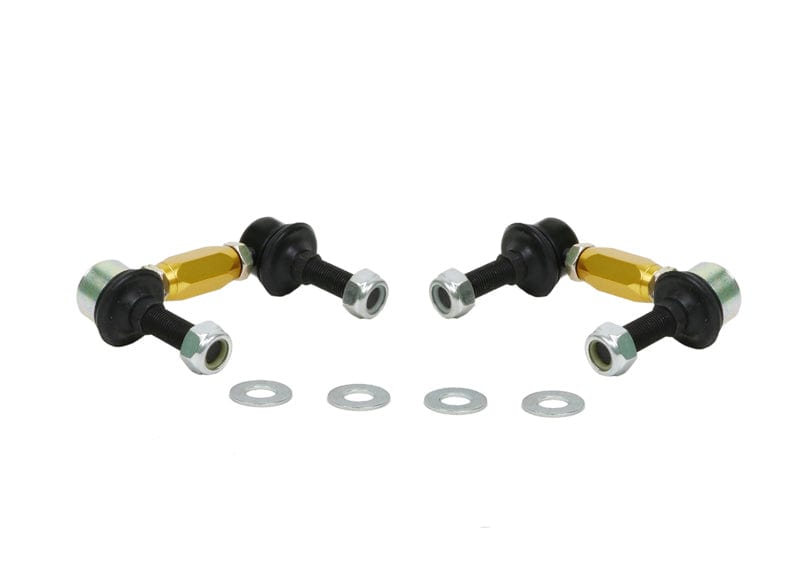

This Whiteline Front Sway Bar Link Assembly fits the 2009-2015 Nissan Frontier PRO-4X (D40). Order it as part number KLC180-090. In the box: 2 links and 4 washers. Whiteline's note for this fit: Adjustable Extra Heavy Duty. It goes on the front of the vehicle.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Frontier: Front Lower Inner Control Arm Bushing, Rear Essential Vehicle Kit, and Rear Sway Bar Link Kit.

Features

  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Install guide: Instructions for fitting are packed in the box.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
Specifications
Part Number KLC180-090
Part Name Sway Bar Link
Vehicle 2009-2015 Nissan Frontier PRO-4X
Chassis Code D40
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Washers
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2009NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2010NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2011NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2012NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2013NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2014NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2015NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
