Product Details

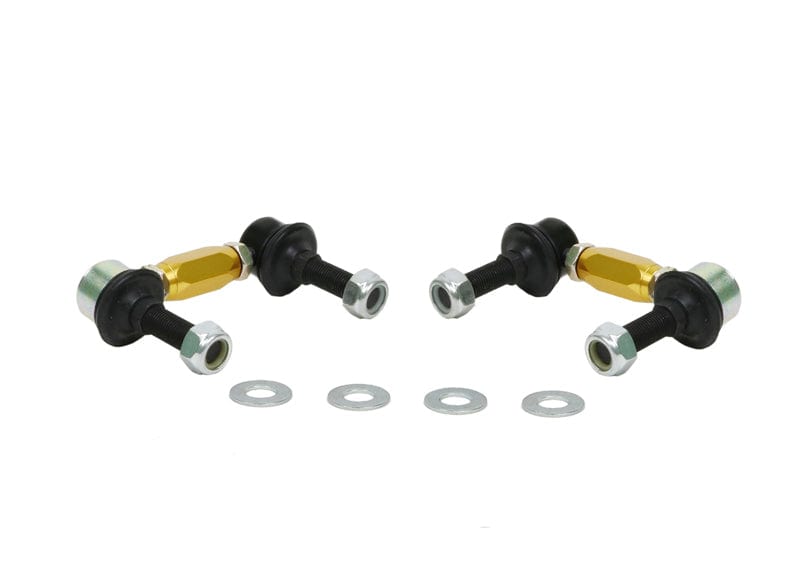

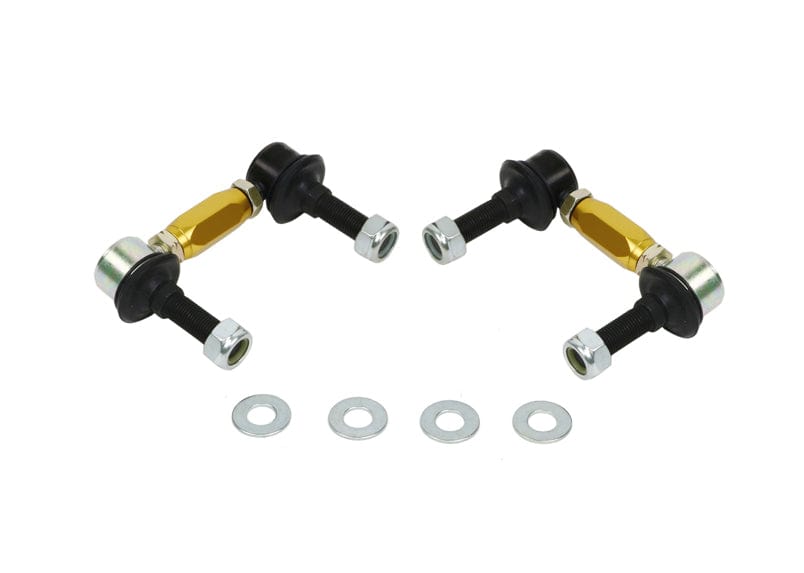

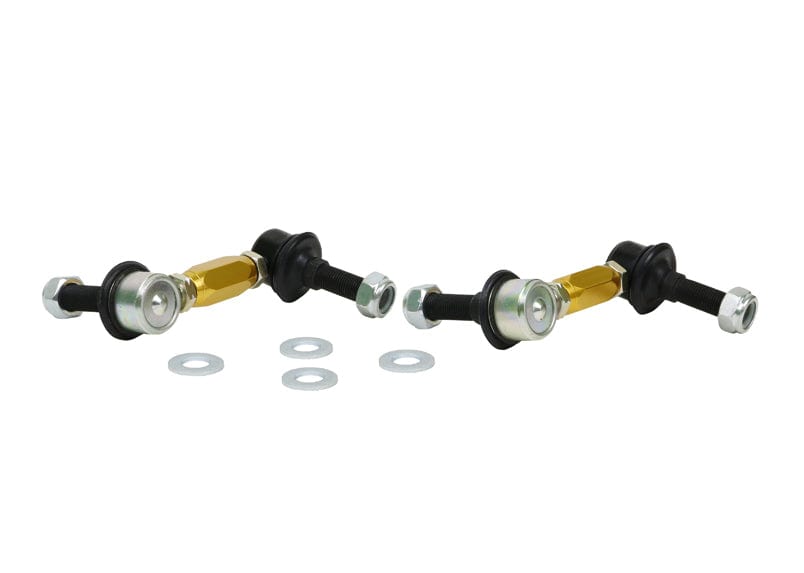

This Whiteline Front Sway Bar Link Assembly fits the 2005-2015 Nissan Xterra S (N50). In the box: 2 links and 4 washers. The part number is KLC180-090. Placement: front. Application note: Adjustable Extra Heavy Duty.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. We also list Front Lower Inner Control Arm Bushing, Rear Essential Vehicle Kit, and Front Upper Control Arm Set - Fixed Offset for the Xterra.

Features

  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Construction: Alloy construction keeps the weight down while handling the loads.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Install guide: An install guide comes in the box.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
Specifications
Part Number KLC180-090
Part Name Sway Bar Link
Vehicle 2005-2015 Nissan Xterra S
Drivetrain RWD/4WD
Chassis Code N50
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Washers
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2005NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2006NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2006NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2007NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2007NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2008NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2008NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2009NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2009NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2010NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2010NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2011NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2011NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2012NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2012NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2013NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2013NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2014NissanXterraRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2014NissanXterra4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
