Product Details

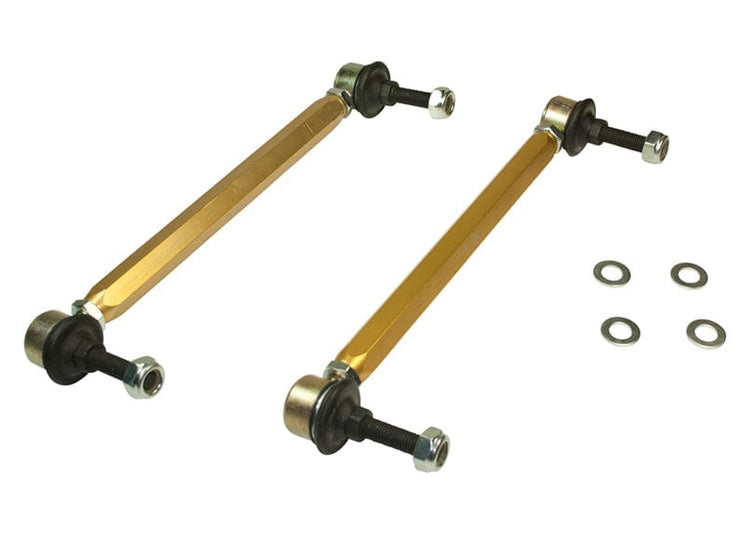

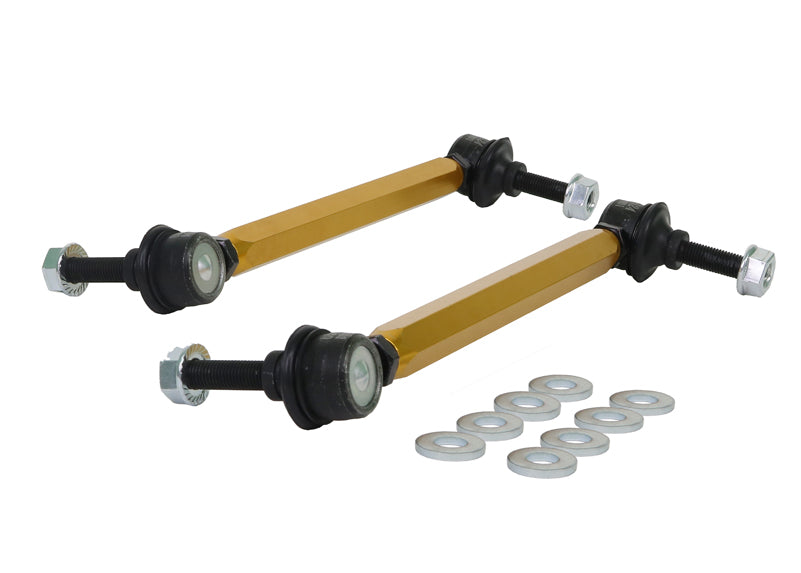

This Whiteline Front Sway Bar Link Assembly fits the 2005-2012 Ford Escape Hybrid (CD2). In the box: 2 links. Position: front. Order it as part number KLC140-255. Whiteline's note for this fit: Adjustable extra heavy duty.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. Other Whiteline parts we list for the Escape: 12mm Adjustable Front Camber Bolts and Rear Sway Bar Link.

Features

  • Hardware: Hardware supplied: locking nuts and washers.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Install guide: An install guide comes in the box.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 2005-2012 Ford Escape Hybrid
Chassis Code CD2
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2005FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2006FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2007FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2008FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2009FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2010FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2011FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2012FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
