Product Details

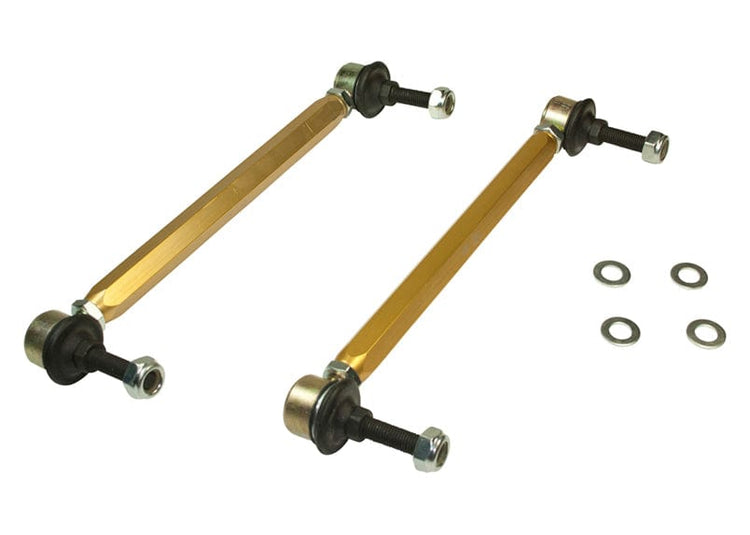

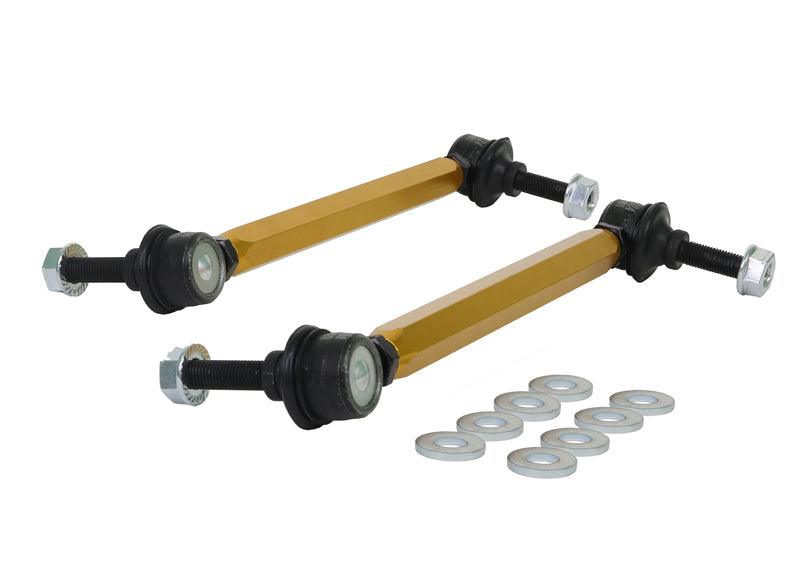

This Whiteline Front Sway Bar Link Assembly fits the 2005-2011 Mercury Mariner Base, Premier (EP). The kit contains 2 links. Application note: Adjustable extra heavy duty. This part is for the front of the vehicle. Part number KLC140-255.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Mariner: 12mm Adjustable Front Camber Bolts and Rear Sway Bar Link.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 2005-2011 Mercury Mariner Base, Premier
Chassis Code EP
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2005MercuryMarinerAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2006MercuryMarinerAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2007MercuryMarinerAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2008MercuryMarinerAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2009MercuryMarinerAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2010MercuryMarinerAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2011MercuryMarinerAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
