Product Details

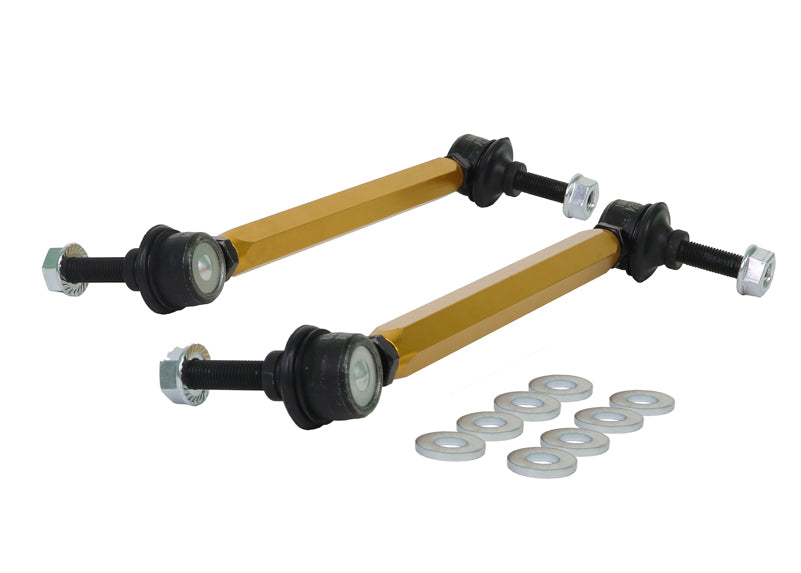

This Whiteline Front Sway Bar Link Assembly fits the 2005-2011 Mazda Tribute i, S (EP). Whiteline's note for this fit: Adjustable extra heavy duty. Part number KLC140-255. You receive 2 links. It goes on the front of the vehicle.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. We also list 12mm Adjustable Front Camber Bolts for the Tribute.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Anodized alloy: The alloy carries an anodized finish for durability.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 2005-2011 Mazda Tribute i, S
Chassis Code EP
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2005MazdaTributeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2006MazdaTributeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2007MazdaTributeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2008MazdaTributeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2009MazdaTributeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2010MazdaTributeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2011MazdaTributeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
