Product Details

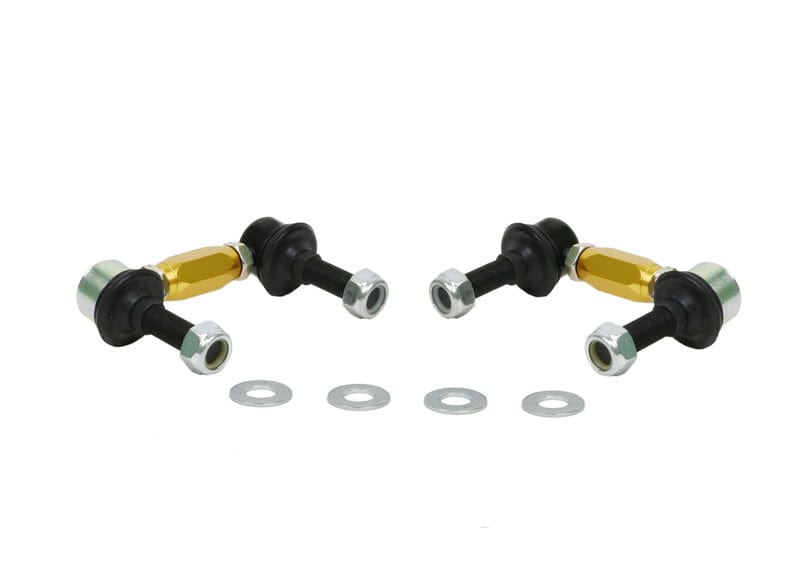

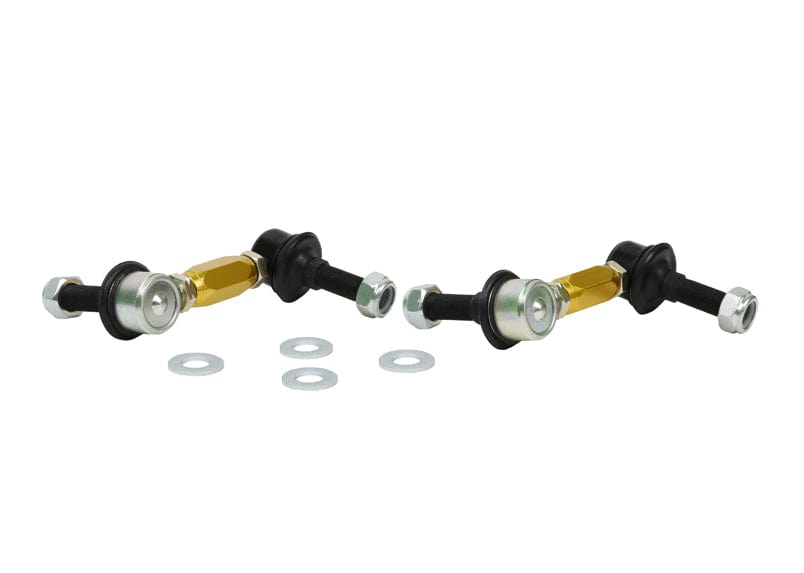

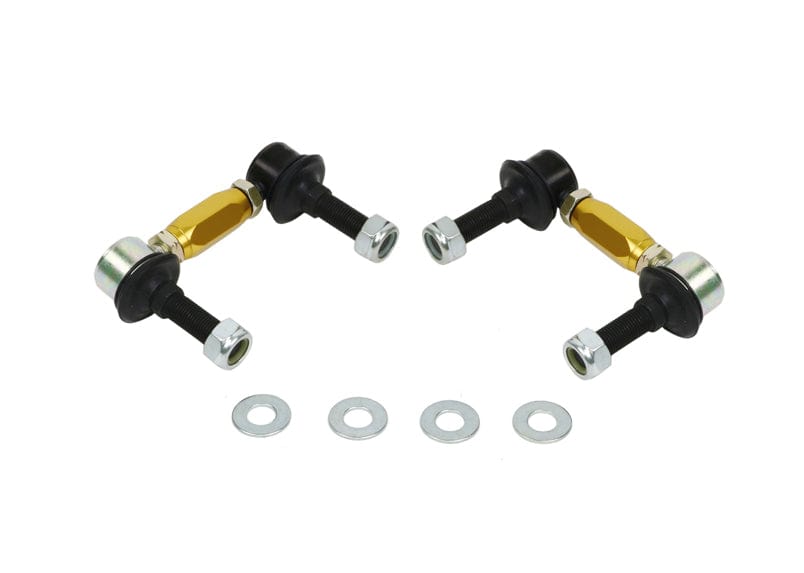

This Whiteline Front Sway Bar Link Assembly fits the 2005-2008 Nissan Frontier Nismo Off-Road (D40). Application note: Adjustable Extra Heavy Duty. The part number is KLC180-090. In the box: 2 links and 4 washers. Position: front.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. A wheel alignment is not required. We also list Front Lower Inner Control Arm Bushing, Rear Essential Vehicle Kit, and 3-Point Adjustable 20mm Rear Sway Bar for the Frontier.

Features

  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Install guide: Step-by-step installation instructions come with it.
  • Hardware: Supplied with locking nuts and washers.
Specifications
Part Number KLC180-090
Part Name Sway Bar Link
Vehicle 2005-2008 Nissan Frontier Nismo Off-Road
Chassis Code D40
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Washers
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2005NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2006NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2007NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2008NissanFrontierAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
