Product Details

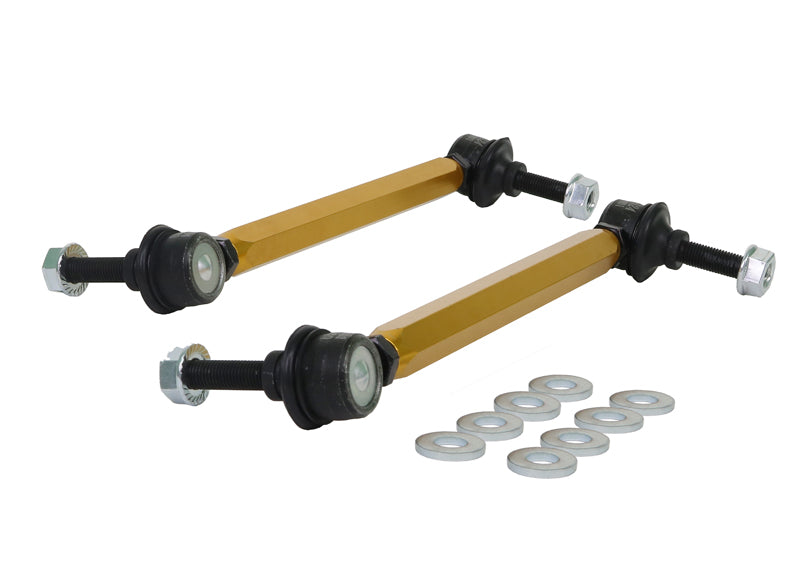

This Whiteline Front Sway Bar Link Assembly fits the 2003-2012 Ford Escape Limited (CD2). Position: front. Application note: Adjustable extra heavy duty. Included: 2 links. The part number is KLC140-255.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the Escape, see 12mm Adjustable Front Camber Bolts, Rear Sway Bar Link, and Front Sway Bar Mount Bushing.

Features

  • Install guide: An install guide comes in the box.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 2003-2012 Ford Escape Limited
Chassis Code CD2
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2003FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2004FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2005FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2006FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2007FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2008FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2009FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2010FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2011FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2012FordEscapeAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
