Product Details

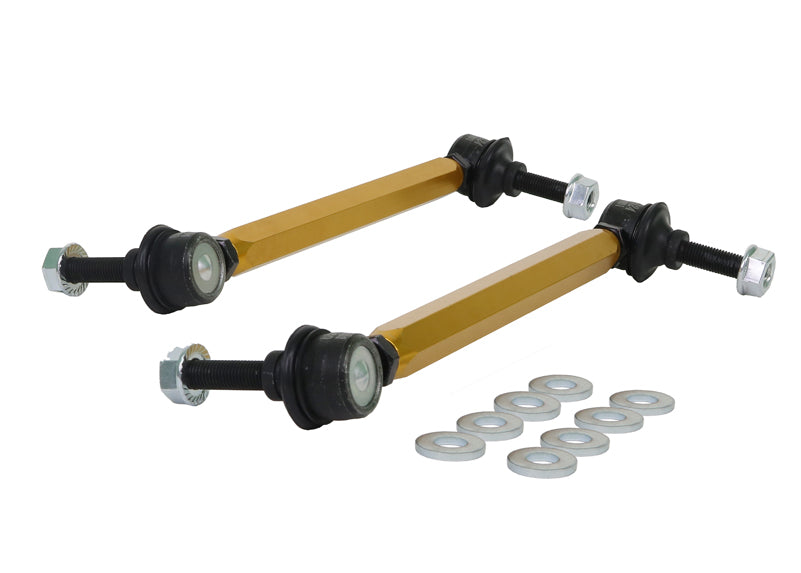

This Whiteline Front Sway Bar Link Assembly fits the 1992-1995 Mazda MX-3 Base (EC). Whiteline's note for this fit: Adjustable extra heavy duty. Order it as part number KLC140-255. In the box: 2 links. It goes on the front of the vehicle.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Expect a moderate job of about 1 hour. No alignment is needed afterward. We also list 12mm Adjustable Front Camber Bolts and Rear Suspension Trailing Arm Bushing for the MX-3.

Features

  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 1992-1995 Mazda MX-3 Base
Chassis Code EC
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1992MazdaMX-3FWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
1993MazdaMX-3FWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
1994MazdaMX-3FWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
1995MazdaMX-3FWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
