Product Details

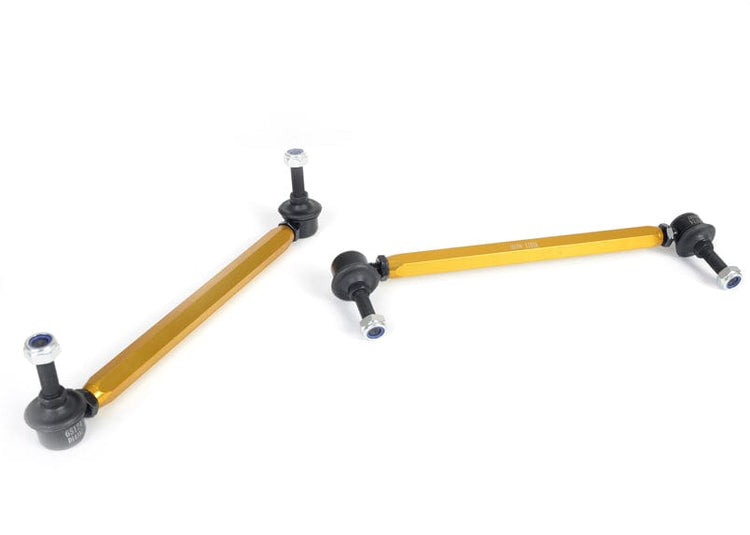

Made to fit the 2016-2017 Mitsubishi Outlander SEL, Sport SEL (GF), the Adjustable Front Sway Bar Link from Whiteline. Part number KLC163. It goes on the front of the vehicle. The kit contains 2 links. The listing names the SEL and Sport SEL trims.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Outlander: 14mm Adjustable Front Camber Bolts.
Features
- Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Construction: High-strength alloy gives the strength needed without much weight.
- Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
- Hardware: Supplied with locking nuts and washers.
Specifications
| Part Number | KLC163 |
| Part Name | Sway Bar Link |
| Vehicle | 2016-2017 Mitsubishi Outlander SEL, Sport SEL |
| Chassis Code | GF |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 270-295 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Length 270-295mm. Bolt Diameter 10mm. |
