Product Details

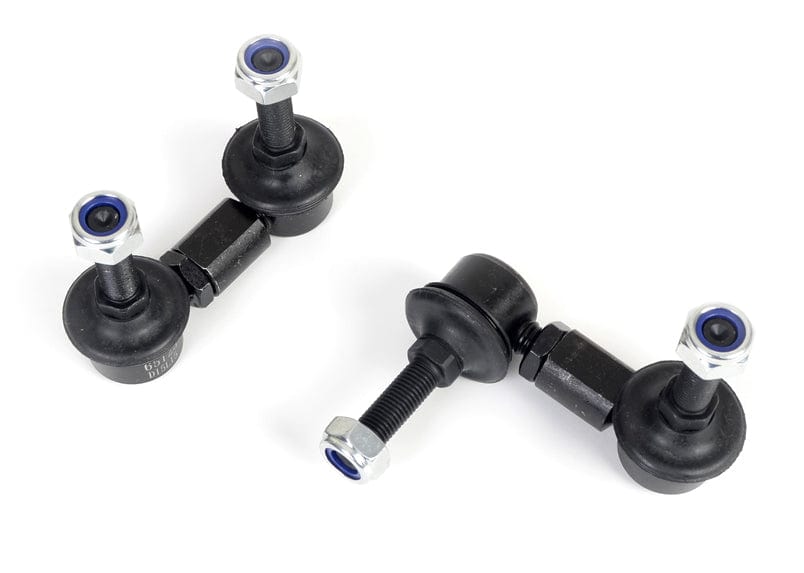

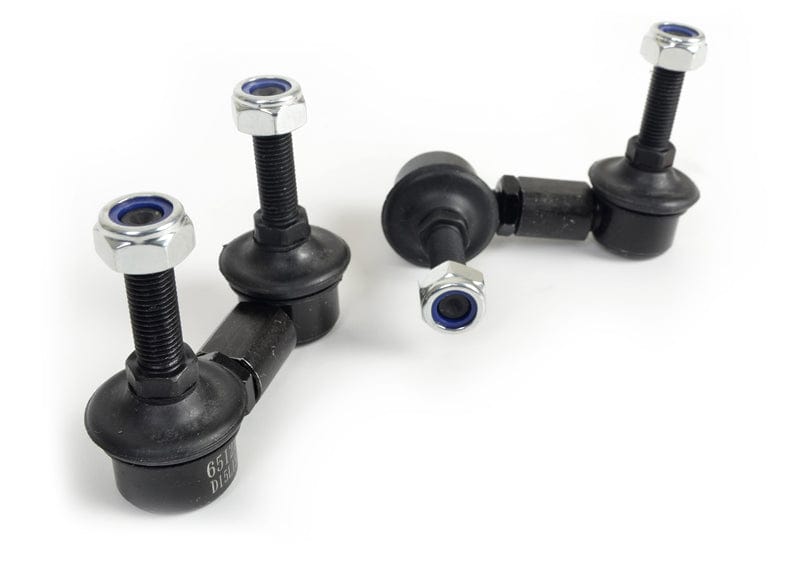

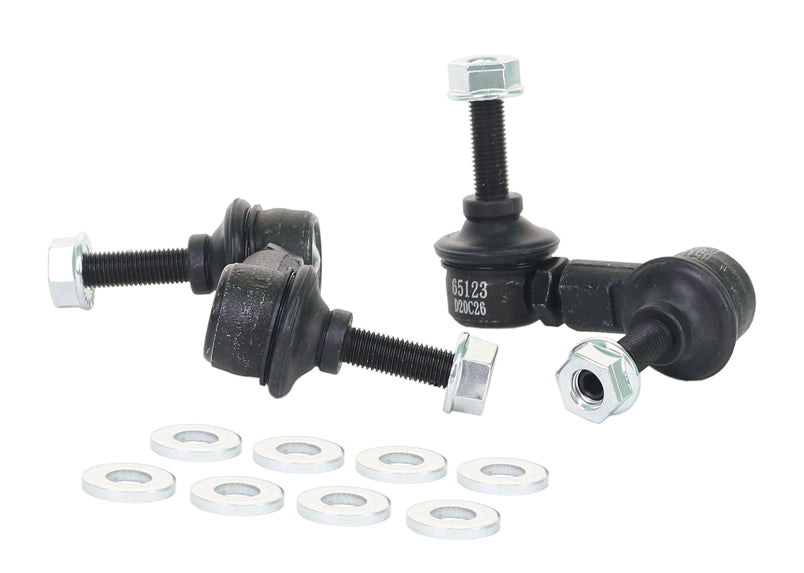

These Whiteline Adjustable Front Sway Bar Drop Links fit the 2011-2013 Subaru Forester X Touring, XT Touring (SH). It goes on the front of the vehicle. Application note: Adjustable Extra Heavy Duty. The part number is KLC139. The kit contains 2 links. Chassis code: SH.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. To go with it on the Forester, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Material: Made from steel.
  • Hardware: Supplied with locking nuts and washers.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Responsiveness: Sharpens the car's reaction in lane changes and through corners.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Warranty: Whiteline backs it with a warranty listed at 3 years and 60,000 miles.
Specifications
Part Number KLC139
Part Name Sway Bar Link
Vehicle 2011-2013 Subaru Forester X Touring, XT Touring
Chassis Code SH
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-70 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2012SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2013SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
