Product Details

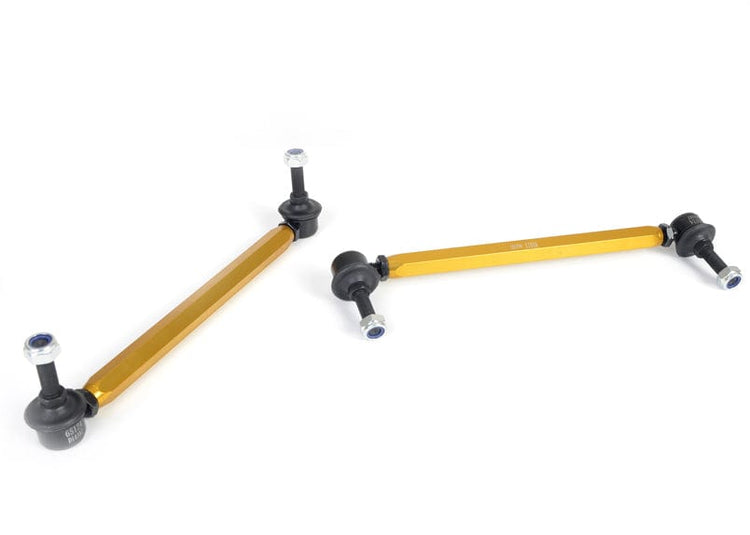

This Whiteline Adjustable Front Sway Bar Link fits the 2008-2017 Mitsubishi Outlander SE (GF). It goes on the front of the vehicle. Whiteline part number: KLC163. You receive 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. To go with it on the Outlander, see 14mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.

Features

  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Construction: The body is made from high-grade alloy for strength without added weight.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2008-2017 Mitsubishi Outlander SE
Drivetrain FWD/AWD
Chassis Code GF
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2008MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2009MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2009MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2010MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2010MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2011MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2011MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2012MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2012MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2013MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2013MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2014MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2014MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2015MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2015MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2016MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2016MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2017MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2017MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
