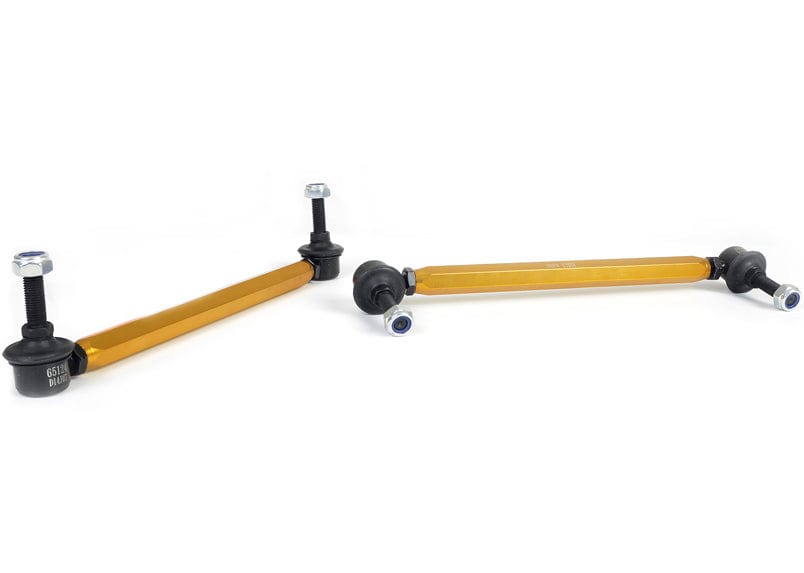

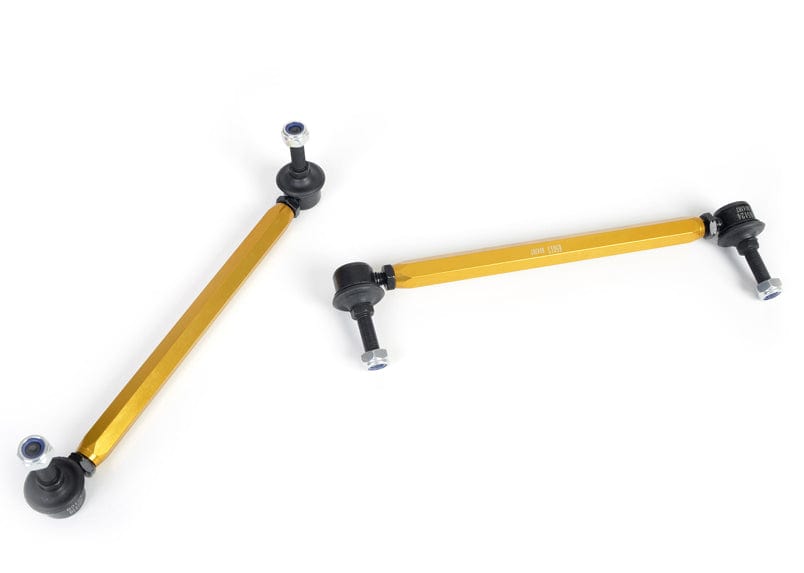

This Whiteline Adjustable Front Sway Bar Link fits the 2008-2010 Saturn Vue XE, XR (Theta). Placement: front. Chassis code: Theta. Part number KLC163. The kit contains 2 links.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. We also list 14mm Adjustable Front Camber Bolts and Rear Sway Bar Link for the Saturn Vue.

Features

  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Hardware: The kit includes locking nuts and washers.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Install guide: Instructions for fitting are packed in the box.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2008-2010 Saturn Vue XE, XR
Drivetrain FWD/AWD
Chassis Code Theta
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008SaturnVueFWDLength 270-295mm. Bolt Diameter 10mm.
2008SaturnVueAWDLength 270-295mm. Bolt Diameter 10mm.
2009SaturnVueFWDLength 270-295mm. Bolt Diameter 10mm.
2009SaturnVueAWDLength 270-295mm. Bolt Diameter 10mm.
2010SaturnVueFWDLength 270-295mm. Bolt Diameter 10mm.
2010SaturnVueAWDLength 270-295mm. Bolt Diameter 10mm.
