Product Details

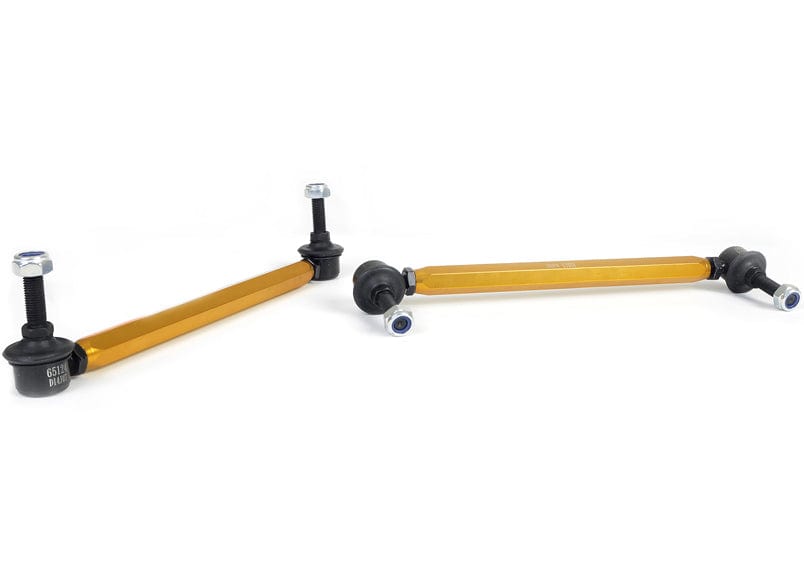

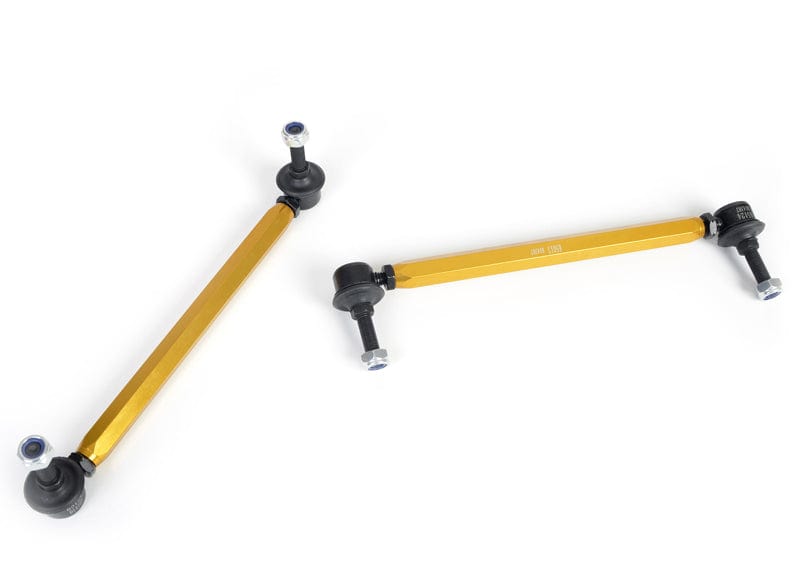

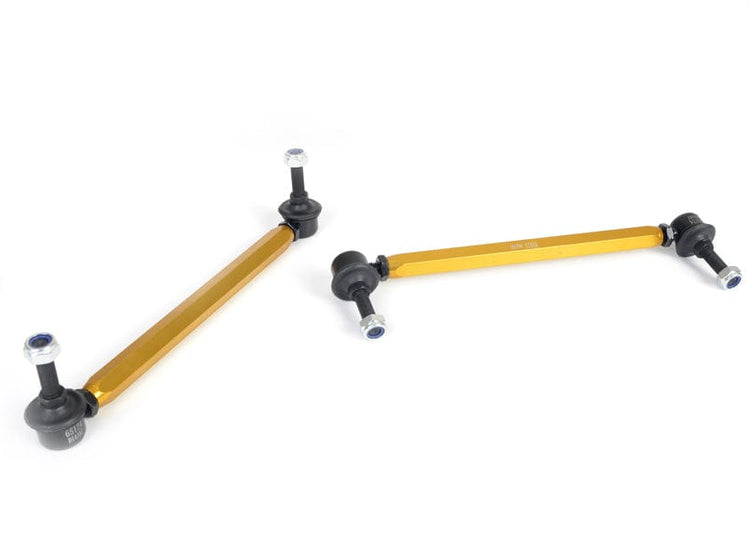

This Whiteline Adjustable Front Sway Bar Link fits the 2007-2017 Mitsubishi Outlander ES (GF). It goes on the front of the vehicle. The kit contains 2 links. Part number KLC163.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. Other Whiteline parts we list for the Outlander: 14mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.

Features

  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Hardware: Hardware supplied: locking nuts and washers.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2007-2017 Mitsubishi Outlander ES
Drivetrain FWD/AWD
Chassis Code GF
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2007MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2008MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2008MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2009MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2009MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2010MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2010MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2011MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2011MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2012MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2012MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2013MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2013MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2014MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2014MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2015MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2015MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2016MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2016MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
