Product Details

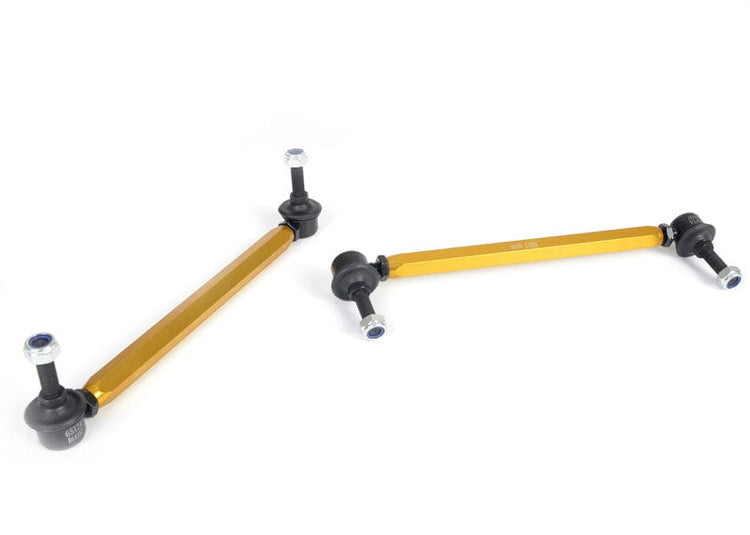

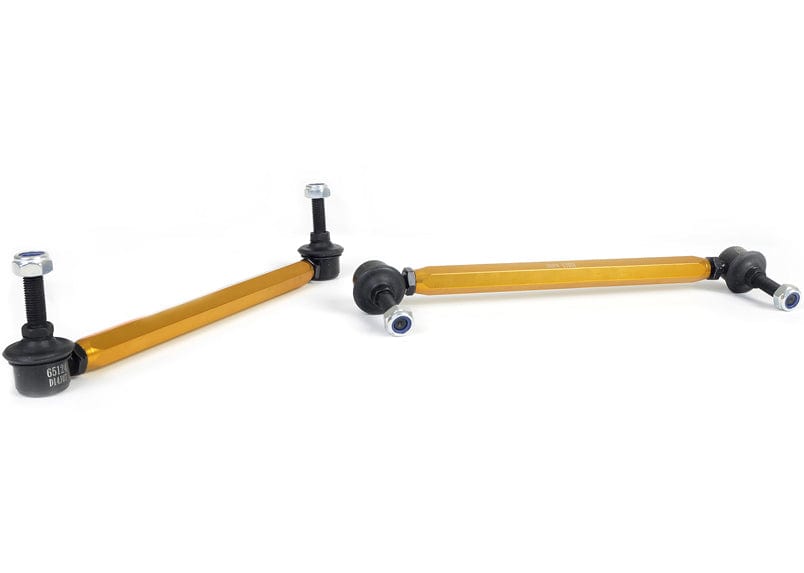

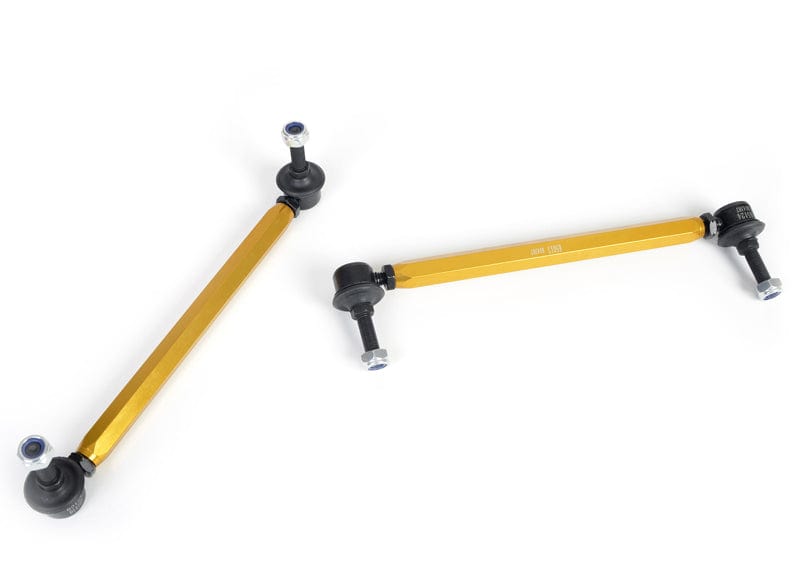

This Whiteline Adjustable Front Sway Bar Link fits the 2007-2011 Mitsubishi Outlander XLS (CU). Order it as part number KLC163. This part is for the front of the vehicle. You receive 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. We also list 14mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar for the Outlander.

Features

  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Install guide: Written install instructions are included with the part.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Hardware: The kit includes locking nuts and washers.
  • Construction: Made from strong, light alloy.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2007-2011 Mitsubishi Outlander XLS
Drivetrain FWD/AWD
Chassis Code CU
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2007MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2008MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2008MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2009MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2009MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2010MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2010MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2011MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2011MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
