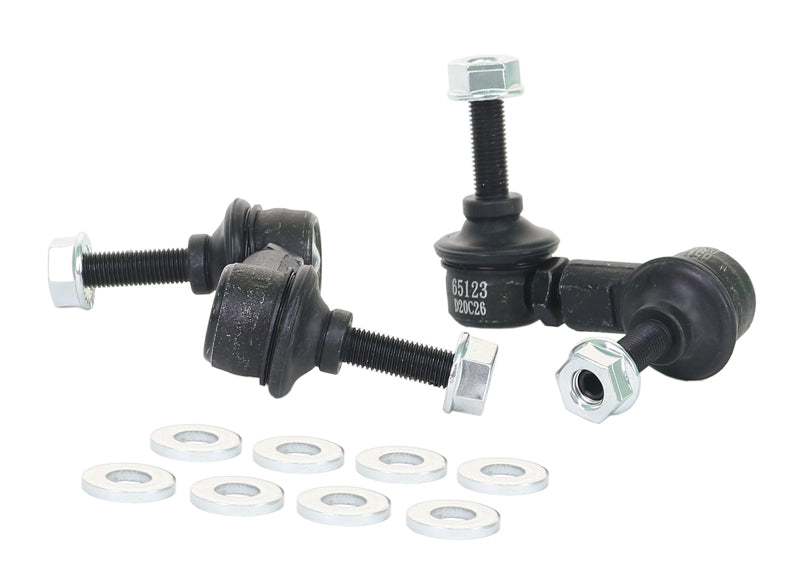

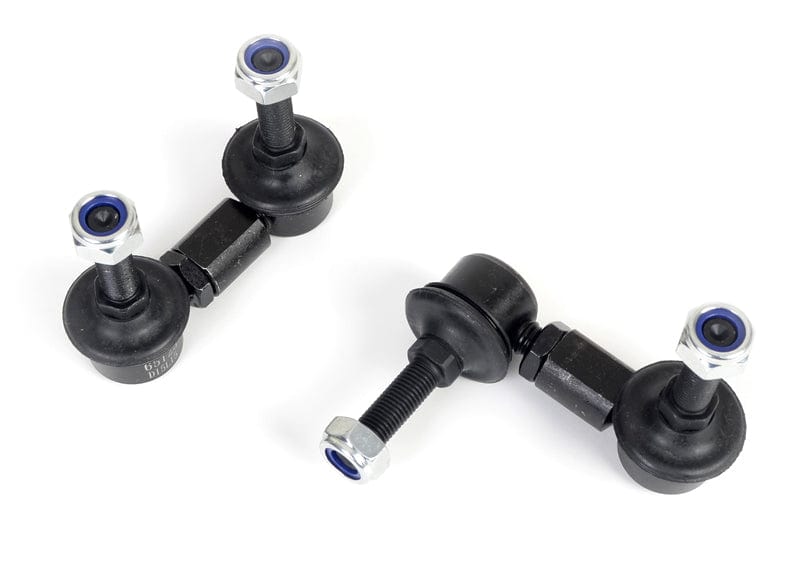

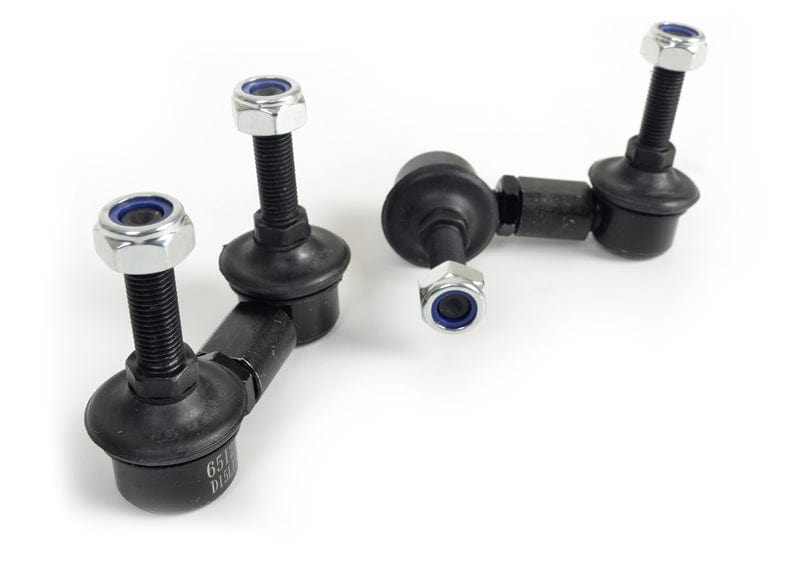

These Whiteline Adjustable Front Sway Bar Drop Links fit the 2005-2013 Subaru Forester XT Premium (SG/SH/SJ). You receive 2 links. This part is for the front of the vehicle. Application note: Adjustable Extra Heavy Duty. Whiteline part number: KLC139. Chassis code: SG/SH/SJ.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts for the Forester.

Features

  • Warranty: Covered by a warranty that Whiteline lists at 3 years and 60,000 miles.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Hardware: Supplied with locking nuts and washers.
  • Responsiveness: Sharpens the car's reaction in lane changes and through corners.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Material: The part is made of steel.
Specifications
Part Number KLC139
Part Name Sway Bar Link
Vehicle 2005-2013 Subaru Forester XT Premium
Chassis Code SG/SH/SJ
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-70 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2006SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2007SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2008SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2009SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2010SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2011SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2012SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2013SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
