Product Details

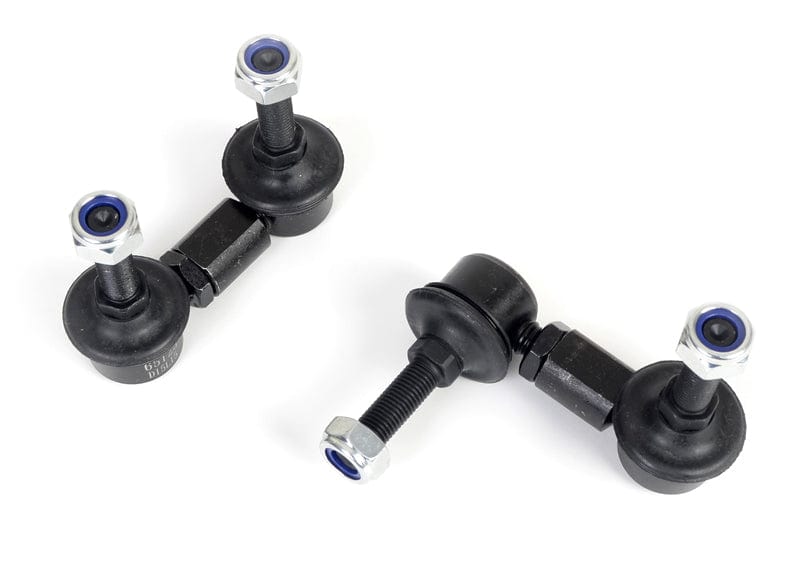

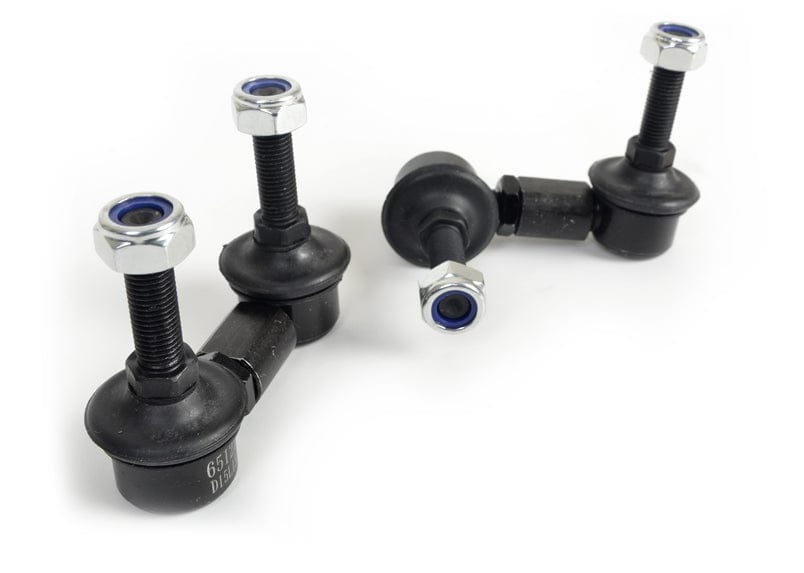

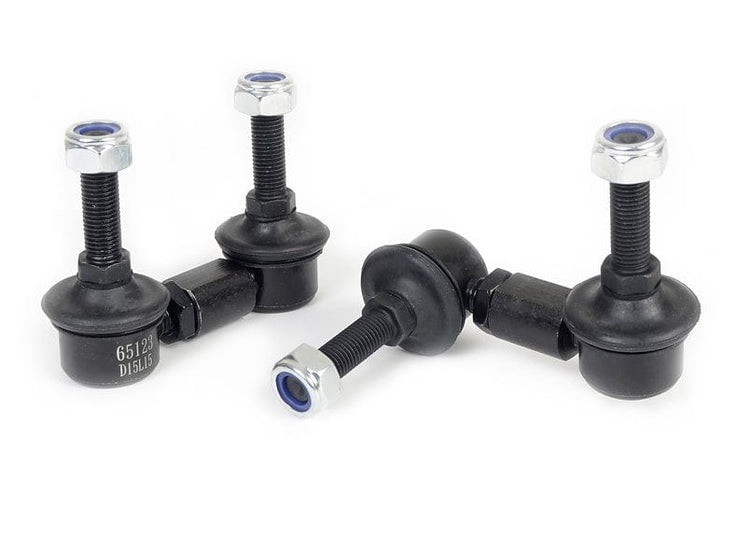

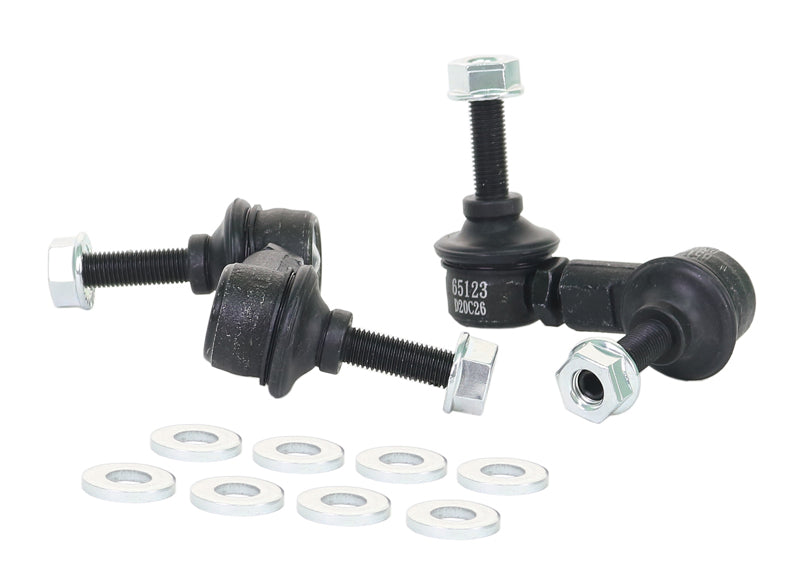

These Whiteline Adjustable Front Sway Bar Drop Links fit the 2005-2009 Subaru Outback XT Limited (BP/BR). The kit contains 2 links. It goes on the front of the vehicle. Application note: Adjustable Extra Heavy Duty. Whiteline part number: KLC139.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. No alignment is needed afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Warranty: Whiteline's listed warranty is 3 years and 60,000 miles.
  • Responsiveness: Improves response in lane changes and cornering.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Material: Made from steel.
Specifications
Part Number KLC139
Part Name Sway Bar Link
Vehicle 2005-2009 Subaru Outback XT Limited
Chassis Code BP/BR
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-70 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2006SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2007SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2008SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2009SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
