Product Details

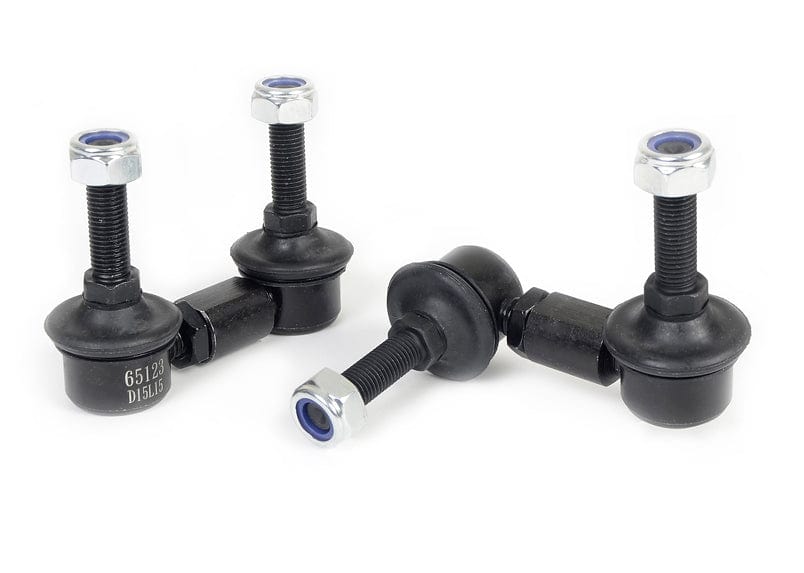

These Whiteline Adjustable Front Sway Bar Drop Links fit the 2005-2008 Subaru Outback R L.L. Bean Edition (BP). In the box: 2 links. Part number KLC139. Placement: front. Chassis code: BP. Application note: Adjustable Extra Heavy Duty. Trim: R L.L. Bean Edition.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Warranty: Whiteline backs it with a warranty listed at 3 years and 60,000 miles.
  • Material: The part is made of steel.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Responsiveness: Improves response in lane changes and cornering.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
Specifications
Part Number KLC139
Part Name Sway Bar Link
Vehicle 2005-2008 Subaru Outback R L.L. Bean Edition
Chassis Code BP
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-70 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2006SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2007SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2008SubaruOutbackAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
