Product Details

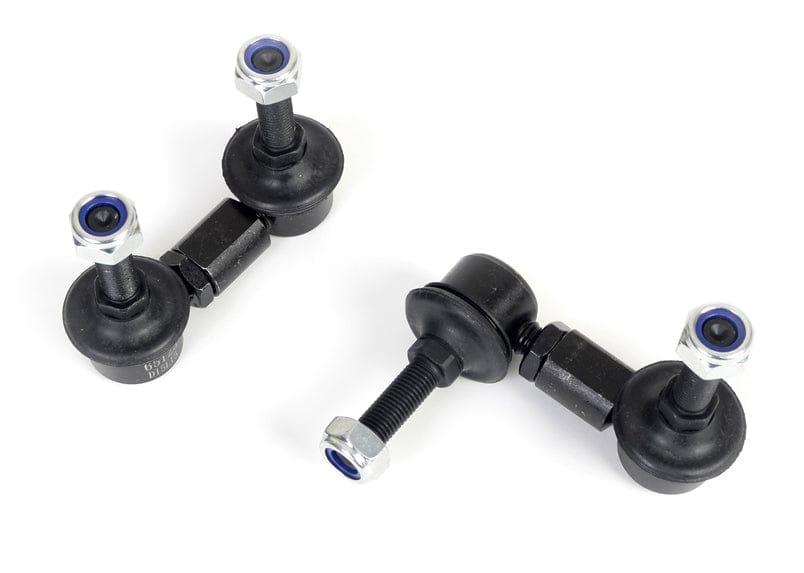

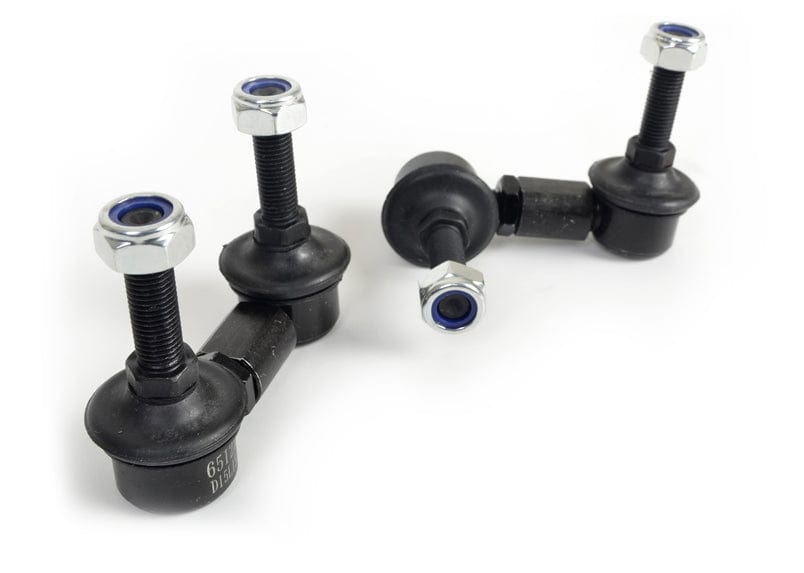

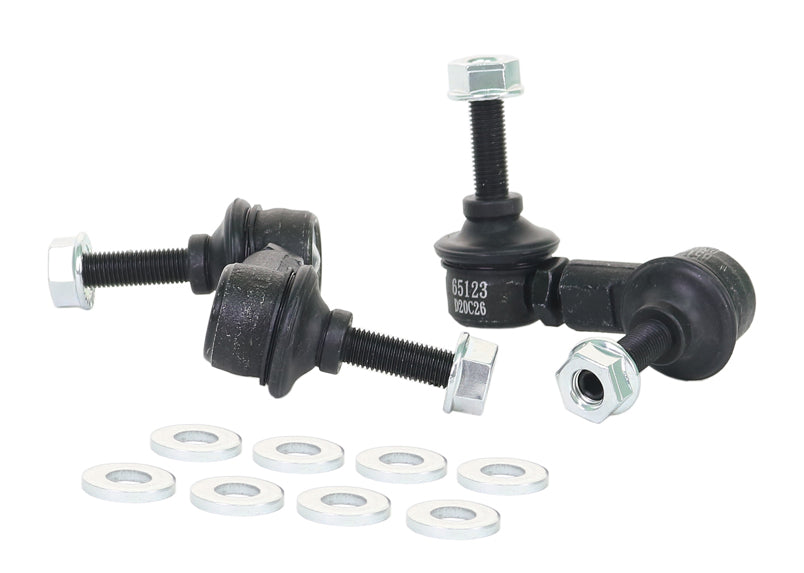

These Whiteline Adjustable Front Sway Bar Drop Links fit the 2004-2009 Subaru Forester XT (SG/SH). The part number is KLC139. Application note: Adjustable Extra Heavy Duty. It goes on the front of the vehicle. The kit contains 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the Forester, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Material: Built from steel.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Warranty: Covered by a warranty that Whiteline lists at 3 years and 60,000 miles.
  • Responsiveness: Sharpens the car's reaction in lane changes and through corners.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
Specifications
Part Number KLC139
Part Name Sway Bar Link
Vehicle 2004-2009 Subaru Forester XT
Chassis Code SG/SH
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-70 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2005SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2006SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2007SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2008SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
2009SubaruForesterAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
